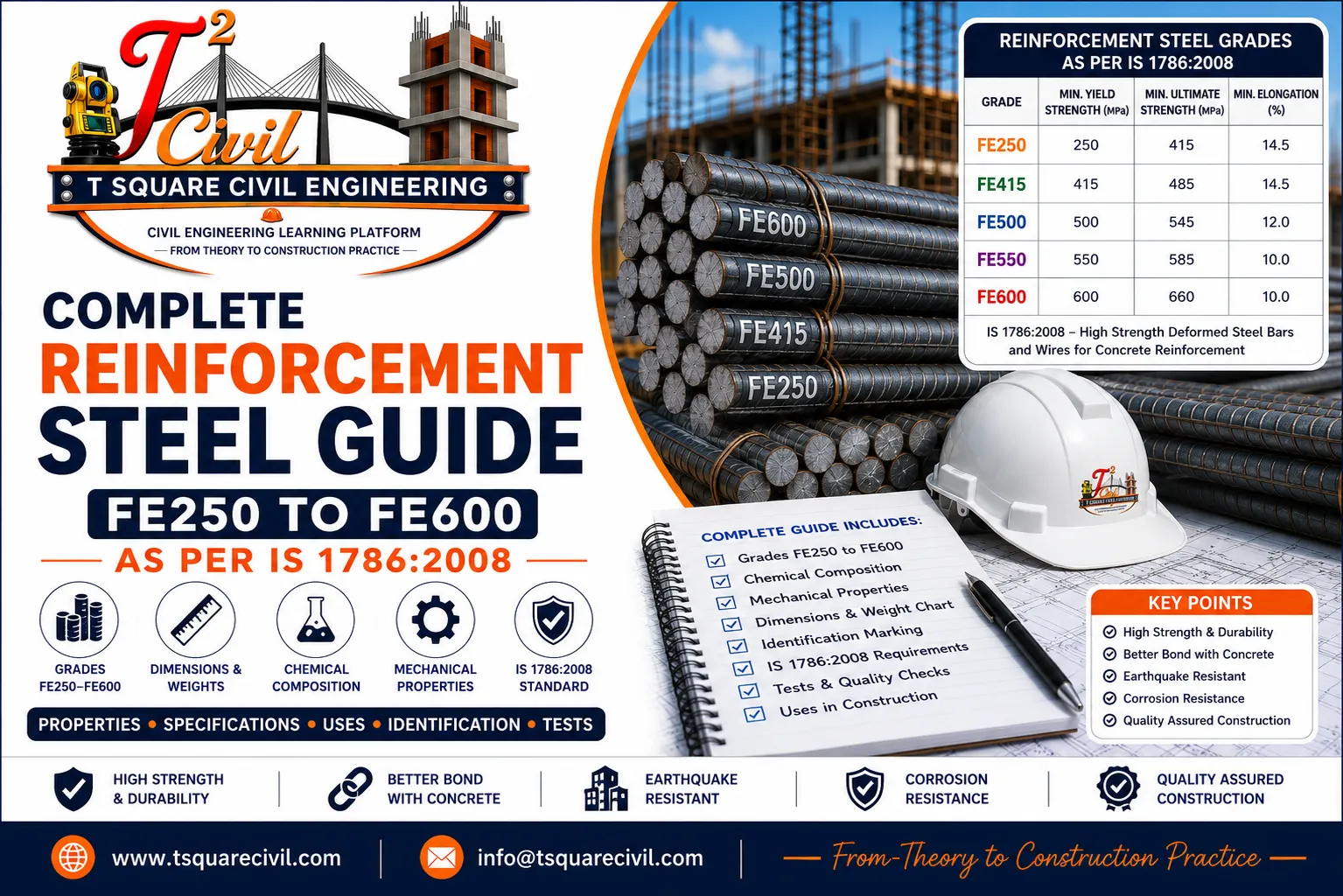

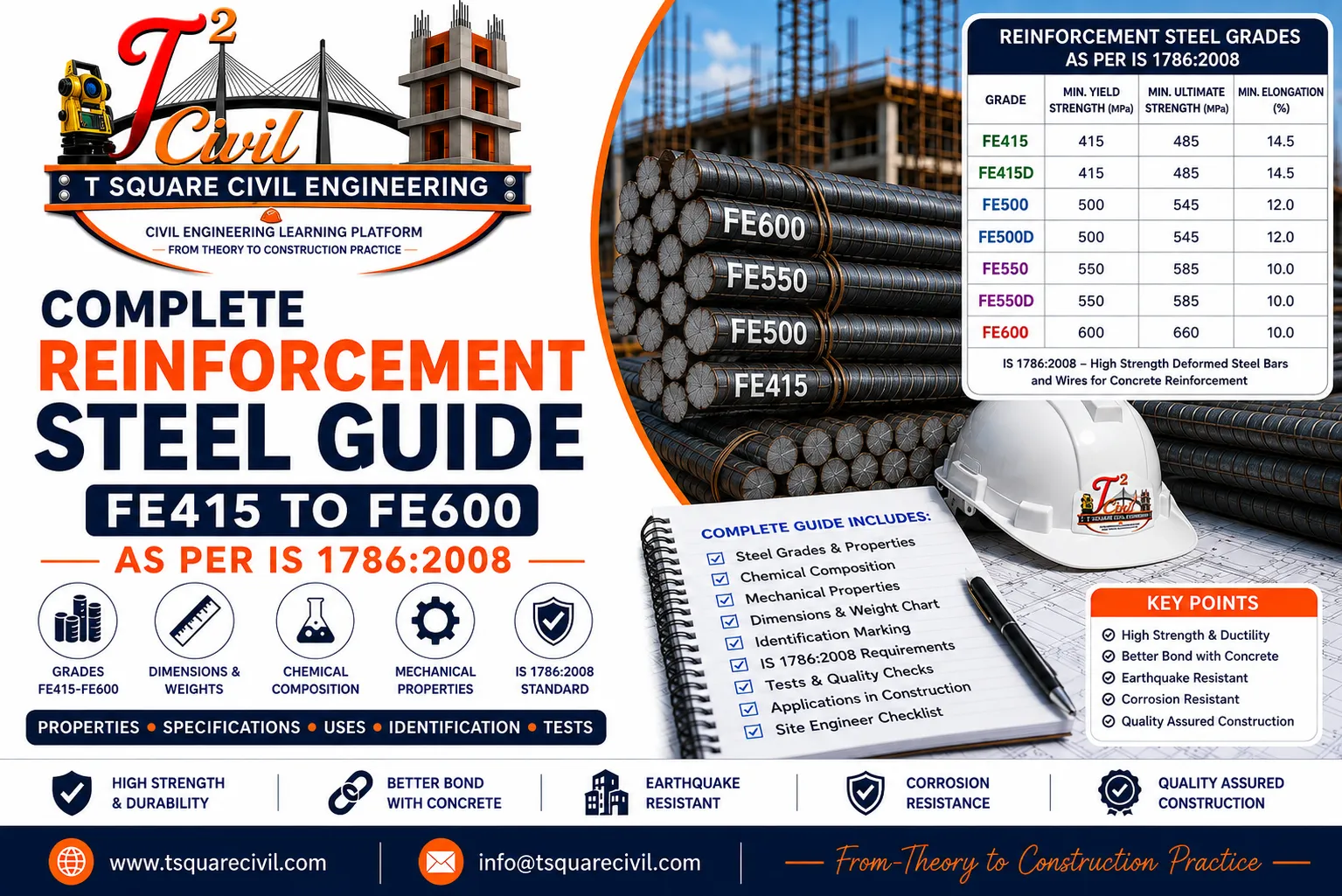

Complete Reinforcement Steel Guide: Fe415 to Fe600 as per IS 1786

Introduction

Reinforcement steel is one of the most important materials used in reinforced concrete construction. It is provided within concrete to resist tensile stresses, control cracking, improve ductility and help structural members safely carry design loads.

In India, high-strength deformed steel bars and wires used for concrete reinforcement are covered by IS 1786:2008, with applicable amendments and project requirements. The standard specifies requirements relating to grades, mechanical properties, chemical composition, dimensions, testing, identification and acceptance of reinforcement steel.

Common reinforcement steel designations discussed in construction practice include Fe415, Fe415D, Fe500, Fe500D, Fe550, Fe550D and Fe600. The exact grade to be used must always be based on the approved structural drawings, design requirements and applicable standards.

This complete reinforcement steel guide explains steel grades, TMT bars, manufacturing, chemical composition, mechanical properties, identification, testing, storage, quality control and practical site inspection requirements. It also provides links to related topics such as development length, lap length, BBS and steel weight calculation.

Who Should Read This Reinforcement Steel Guide?

This guide is useful for:

• Civil engineering students
• Diploma civil engineers
• Site engineers
• Structural engineers
• QA/QC engineers
• Contractors
• Consultants
• Quantity surveyors
• Civil engineering interview candidates
• GATE and competitive examination aspirants

Quick Answer

Reinforcement steel is steel embedded in concrete to resist tensile stresses and improve the structural performance of reinforced concrete members. IS 1786:2008 covers high-strength deformed steel bars and wires for concrete reinforcement and specifies requirements for grades, mechanical properties, chemical composition, dimensions, testing and identification. The commonly encountered grades include Fe415, Fe415D, Fe500, Fe500D, Fe550, Fe550D and Fe600, subject to the applicable standard, amendments and project specifications.

Reinforcement Steel Grades

The designation Fe is used with the specified yield/proof stress value expressed in MPa. For example, Fe500 indicates a specified minimum yield/proof stress of 500 MPa as applicable to the relevant grade and standard requirements.

*Availability and designation requirements should be verified against the applicable edition/amendments of IS 1786 and the project specification.

Important Note on Steel Grade Selection

Do not select reinforcement grade only because it has a higher strength value. The structural designer selects the grade considering strength, ductility, detailing requirements, seismic requirements, concrete grade, member design and applicable codes.

Always use the grade specified in the approved structural drawings and project specifications.

This is much safer and more authoritative than the current “Fe250–Fe600” approach.

What Does Fe500D Mean?

Fe500D is a reinforcement steel grade having a specified strength level of 500 MPa with enhanced ductility requirements compared with the corresponding Fe500 category.

The letter D is associated with enhanced elongation/ductility requirements. Higher ductility can be particularly important where structural design requires greater deformation capacity.

However, the selection of Fe500D should not be presented as an automatic requirement for every earthquake-prone structure. The appropriate reinforcement grade must be selected according to the structural design, seismic detailing requirements and applicable codes.

Fe500 vs Fe500D

What is Reinforcement Steel?

Definition

Reinforcement steel is a high-strength steel bar embedded within concrete to improve its ability to resist tensile, shear, and bending stresses.

Concrete is strong in compression but weak in tension. Steel reinforcement compensates for this weakness, enabling reinforced concrete structures to safely resist applied loads.

The combination of concrete and steel forms Reinforced Cement Concrete (RCC), one of the most widely used construction materials worldwide.

Why Reinforcement Steel is Used in RCC

Steel reinforcement provides several important benefits:

• Increases tensile strength.
• Improves flexural strength.
• Controls cracking.
• Enhances ductility.
• Improves earthquake resistance.
• Increases load-carrying capacity.
• Improves structural safety.
• Extends the service life of structures.

Types of Reinforcement Steel

1. Plain Mild Steel Bars (Fe250)

Characteristics:

• Smooth surface
• Lower bond strength
• Good ductility
• Easy to bend

Applications:

• Dowel bars
• Expansion joints
• Temporary works
• Light reinforcement

2. High Strength Deformed Bars (HYSD)

Characteristics:

• Ribbed surface
• Better bond with concrete
• Higher tensile strength
• Improved crack resistance

These bars were widely used before TMT technology became common.

3. TMT Bars

TMT (Thermo-Mechanically Treated) bars are the most widely used reinforcement today.

Advantages:

• High yield strength
• Excellent ductility
• Superior seismic resistance
• Better corrosion resistance
• Excellent weldability
• Longer service life

Reinforcement Steel Grades

The designation Fe indicates the minimum yield strength of the steel in MPa.

Understanding “D” Grade Steel

Steel grades ending with “D” (for example, Fe500D, Fe550D, and Fe600D) are designed to provide improved ductility compared with their corresponding standard grades.

Higher ductility helps reinforcement absorb energy during events such as earthquakes, making these grades suitable for seismic-resistant construction, as specified by the structural designer.

Applications of Different Steel Grades

Fe415

Used for:

• Residential buildings
• Slabs
• Beams
• Columns
• Footings

Fe500

Used for:

• Residential RCC
• Commercial buildings
• Bridges
• Water tanks
• Retaining walls

Fe500D

Preferred for:

• Earthquake-resistant buildings
• Schools
• Hospitals
• Public buildings

Fe550 & Fe550D

Used in:

• High-rise buildings
• Industrial structures
• Heavy foundations

Fe600 & Fe600D

Suitable for:

• Long-span bridges
• Metro projects
• Dams
• Airports
• High-performance structures

Comparison of Steel Grades

Advantages of TMT Bars

Modern TMT bars provide:

• High tensile strength
• Excellent ductility
• Better bond with concrete
• High fatigue resistance
• Improved corrosion resistance
• Better fire resistance
• Excellent weldability
• Long service life
• Lower maintenance
• Better seismic performance

Site Engineer Tip

Always verify the reinforcement steel grade against the approved structural drawings before cutting, bending or placing bars. Check the manufacturer’s identification, material test certificate and applicable quality requirements before accepting the steel for structural work.

Never substitute one reinforcement grade for another without approval from the responsible structural designer.

Manufacturing Process of TMT Bars

Introduction

Thermo-Mechanically Treated (TMT) bars are manufactured using a specialized process that combines controlled heat treatment and mechanical working to produce reinforcement steel with high strength, excellent ductility, superior weldability, and improved corrosion resistance.

Compared with traditional mild steel bars, TMT bars offer significantly better performance in reinforced cement concrete (RCC) structures, making them the preferred choice for modern construction.

The manufacturing process consists of several carefully controlled stages to ensure compliance with IS 1786.

Step 1 – Selection of Raw Materials

The process begins with high-quality raw materials.

The primary raw materials include:

• Iron ore
• Steel scrap
• Sponge iron (Direct Reduced Iron)
• Ferro-alloys (such as manganese and silicon)
• Limestone and dolomite (used during steelmaking)

The quality of these raw materials directly affects the final strength, ductility, and durability of the reinforcement bars.

Step 2 – Steel Melting

The raw materials are melted in an Electric Arc Furnace (EAF) or Basic Oxygen Furnace (BOF) at temperatures of approximately 1,600°C.

During melting:

• Impurities are removed.
• Alloying elements are added.
• The chemical composition is adjusted.
• The molten steel is refined to achieve the required quality.

Step 3 – Continuous Casting

The refined molten steel is poured into a continuous casting machine where it solidifies into billets.

Typical billet sizes include:

• 100 × 100 mm
• 130 × 130 mm
• 150 × 150 mm

These billets are the starting material for rolling TMT bars.

Step 4 – Hot Rolling

The billets are reheated to approximately 1,100–1,200°C and passed through a series of rolling mills.

During this stage:

• The diameter is reduced.
• The required bar size is achieved.
• Surface ribs are formed.
• Mechanical properties begin to develop.

Common bar diameters:

• 8 mm
• 10 mm
• 12 mm
• 16 mm
• 20 mm
• 25 mm
• 28 mm
• 32 mm
• 36 mm
• 40 mm

Step 5 – Thermo-Mechanical Treatment (TMT)

Immediately after hot rolling, the bars enter the TMT quenching system.

This stage includes:

Rapid Water Quenching

The outer surface is cooled rapidly with high-pressure water jets.

This produces a hard martensite layer on the outside.

Self-Tempering

The hot core transfers heat to the outer layer.

This tempers the hardened surface and improves toughness.

Atmospheric Cooling

The bars cool naturally on the cooling bed.

The core transforms into a ferrite-pearlite structure, providing excellent ductility.

Final Microstructure

A finished TMT bar has three zones:

• Hard outer martensitic layer
• Tempered intermediate zone
• Ductile ferrite-pearlite core

This unique structure provides both high strength and flexibility.

Site Engineer Tip

Always purchase TMT bars from BIS-certified manufacturers. Verify the manufacturer’s test certificate (MTC) before using steel on site.

Rib Pattern of TMT Bars

Unlike plain steel bars, TMT bars have deformed ribs on the surface.

These ribs provide:

• Better bond with concrete
• Reduced slippage
• Improved load transfer
• Better crack resistance
• Higher structural performance

Well-formed ribs improve anchorage and reduce the required development length.

Chemical Composition of Reinforcement Steel

The chemical composition significantly influences:

• Strength
• Weldability
• Ductility
• Corrosion resistance
• Fatigue resistance

Typical alloying elements include:

Steel manufacturers maintain these elements within the limits specified in IS 1786.

Importance of Carbon Content

Lower carbon content generally provides:

• Better weldability
• Improved ductility
• Better earthquake resistance

Excessive carbon may:

• Reduce weldability
• Increase brittleness
• Increase the cracking risk during welding

Mechanical Properties of TMT Bars

Mechanical properties determine the suitability of reinforcement steel for structural applications.

Important properties include:

Yield Strength

Yield strength is the stress at which steel begins to deform permanently.

Example:

Ultimate Tensile Strength

Ultimate tensile strength is the maximum stress the bar can withstand before fracture.

Higher tensile strength improves structural safety under extreme loading.

Elongation

Elongation measures ductility.

Higher elongation means:

• Better bending capacity
• Improved earthquake performance
• Reduced brittle failure

Bendability

Good TMT bars can be bent without cracking.

This property is important during:

• Beam reinforcement
• Column reinforcement
• Stirrups
• Hooks
• Cranks
• Anchorage

Weldability

Modern TMT bars have good weldability due to controlled carbon content.

However, welding should always follow the structural drawings and applicable project specifications.

IS 1786 – Reinforcement Steel Standard

IS 1786 is the Indian Standard covering High Strength Deformed Steel Bars and Wires for Concrete Reinforcement.

The standard specifies:

• Steel grades
• Mechanical properties
• Chemical composition
• Dimensions and tolerances
• Testing methods
• Marking requirements
• Acceptance criteria

Following IS 1786 helps ensure that reinforcement steel meets the required quality and safety standards.

Marking of TMT Bars

Every reinforcement bar should have clear markings indicating:

• Manufacturer’s identification
• Steel grade (Fe500, Fe550, etc.)
• BIS certification mark (where applicable)
• Rolling identification

These markings help with traceability and quality verification.

Storage and Handling of Reinforcement Steel

Proper storage prevents corrosion and maintains steel quality.

Best Practices

• Store bars above ground on timber sleepers.
• Protect steel from standing water.
• Cover stacks during heavy rain.
• Separate bars by diameter and grade.
• Use the oldest stock first (FIFO).
• Avoid contamination with oil, grease, or chemicals.

Common Storage Mistakes

• Storing directly on soil.
• Mixing different steel grades.
• Allowing excessive rusting.
• Improper identification.
• Poor stacking practices.

Quick Revision

Site Engineer Checklist

Before using reinforcement steel:

• ✅ Verify the steel grade against structural drawings.
• ✅ Check manufacturer markings and BIS certification.
• ✅ Inspect bars for excessive rust, cracks, or damage.
• ✅ Confirm the bar diameter with measuring tools.
• ✅ Store steel properly above ground and protected from moisture.

Importance of Testing Reinforcement Steel

Reinforcement steel is one of the most critical materials used in reinforced cement concrete (RCC). Even if concrete is properly designed, poor-quality reinforcement can reduce the strength, durability, and safety of the entire structure.

Testing reinforcement steel ensures that the supplied bars comply with IS 1786 and the project specifications.

Proper testing helps to:

• Verify steel grade.
• Confirm yield strength.
• Check tensile strength.
• Evaluate ductility.
• Ensure bendability.
• Detect manufacturing defects.
• Improve structural safety.
• Maintain quality control.

Testing should be carried out in approved laboratories before steel is used for major construction works.

Visual Inspection of Reinforcement Steel

Before laboratory testing, every batch of reinforcement should be visually inspected.

Check the Following

• Manufacturer’s identification mark
• Steel grade (Fe415, Fe500, Fe550, Fe600, etc.)
• BIS certification mark (where applicable)
• Diameter and length of bar
• Surface ribs
• Excessive rust
• Oil or grease contamination
• Cracks or surface defects
• Bent or damaged bars

Reject bars showing severe corrosion, deep pitting, or visible manufacturing defects.

Site Engineer Tip

Do not use reinforcement bars with excessive rust that causes noticeable loss of cross-sectional area. Light surface rust is generally acceptable if permitted by project specifications and after cleaning.

Tensile Test

Purpose

The tensile test determines the mechanical properties of reinforcement steel, including:

• Yield strength
• Ultimate tensile strength
• Percentage elongation

This test verifies whether the steel complies with IS 1786.

Equipment Required

• Universal Testing Machine (UTM)
• Vernier caliper
• Measuring scale
• Extensometer (if required)

Test Procedure

1. Measure the bar diameter.
2. Cut the required specimen length.
3. Mount the specimen in the Universal Testing Machine.
4. Apply tensile load gradually.
5. Record the yield load.
6. Continue loading until the specimen fractures.
7. Record the maximum load.
8. Measure the final elongation.

Parameters Measured

• Yield Strength
• Ultimate Tensile Strength
• Percentage Elongation

These values should satisfy the requirements specified in IS 1786 for the respective steel grade.

Yield Strength

Definition

Yield strength is the stress at which reinforcement steel begins to undergo permanent deformation.

Before reaching the yield point, steel returns to its original shape when the load is removed. Beyond this point, permanent deformation occurs.

Typical Minimum Yield Strength

Higher yield strength allows engineers to design more efficient structural members while maintaining safety.

Ultimate Tensile Strength

Ultimate tensile strength (UTS) is the maximum tensile stress that reinforcement steel can withstand before fracture.

A higher UTS improves the ability of reinforcement to resist extreme loading conditions such as heavy live loads, wind, or seismic forces.

Importance

• Improves structural reliability.
• Increases resistance to overload.
• Provides a safety margin before failure.
• Supports better performance during earthquakes.

Percentage Elongation

Percentage elongation is a measure of the ductility of reinforcement steel.

Steel with higher elongation can deform significantly before breaking, providing warning signs before failure.

Advantages of Higher Ductility

• Better earthquake resistance.
• Improved energy absorption.
• Easier bending on site.
• Reduced risk of brittle failure.
• Better structural performance.

“D” grade bars (such as Fe500D, Fe550D, and Fe600D) generally provide improved ductility compared with the corresponding standard grades.

Bend Test

Purpose

The bend test checks the ability of reinforcement steel to withstand bending without cracking.

This is important because reinforcement bars are bent on construction sites for:

• Stirrups
• Hooks
• Cranks
• Beam reinforcement
• Column reinforcement
• Footings

Procedure

1. Cut the test specimen.
2. Bend the specimen around the specified mandrel.
3. Bend to the angle specified in IS 1786.
4. Inspect for cracks or fractures.

Acceptance

The reinforcement bar should not show visible cracks after bending.

Rebend Test

The rebend test evaluates the performance of reinforcement steel after bending, aging, and rebending.

It simulates actual construction conditions where bars may be bent, stored, and later adjusted.

Procedure

• Bend the specimen.
• Subject it to the specified aging conditions.
• Rebend it according to IS 1786.
• Inspect for cracks.

Importance

The rebend test confirms:

• Ductility
• Toughness
• Resistance to cracking

Quality Control and Acceptance

Every batch of reinforcement steel should be accepted only after confirming:

• Steel grade.
• Bar diameter.
• Manufacturer identification.
• Mechanical properties.
• Bend test results.
• Rebend test results.
• Compliance with IS 1786.

Maintain complete records of:

• Test certificates.
• Batch numbers.
• Inspection reports.
• Laboratory reports.
• Material receipt details.

Common Defects in Reinforcement Steel

Avoid using bars with:

• Deep corrosion.
• Lamination defects.
• Surface cracks.
• Improper rib formation.
• Incorrect diameter.
• Mechanical damage.
• Missing identification marks.

Quick Revision

Site Engineer Checklist

Before approving reinforcement steel for construction:

• ✅ Verify manufacturer and steel grade.
• ✅ Check bar diameter.
• ✅ Review laboratory test certificates.
• ✅ Confirm tensile, bend, and rebend test compliance.
• ✅ Inspect bars for rust and physical damage.
• ✅ Store reinforcement properly until use.

Development Length of Reinforcement Bars

Development length is the length of reinforcement that must be embedded in concrete so that the required force in the bar can be safely transferred to the surrounding concrete through bond.

Development length depends on factors such as:

• Reinforcement grade
• Bar diameter
• Concrete grade
• Type of stress
• Bond conditions
• Bar surface characteristics
• Design requirements
• Applicable code provisions

Development Length Formula

The development length relationship used in reinforced concrete design is:

Ld = ϕ × σs / (4 × τbd)

Where:

• Ld = Development length
• ϕ = Nominal diameter of reinforcement bar
• σs = Stress in reinforcement at the design load
• τbd = Design bond stress

The actual design value must be determined in accordance with the applicable provisions of IS 456 and the approved structural design.

Site Engineer Tip

Do not use a fixed development-length value for every structural member. Always check the structural drawings and the applicable code provisions before terminating or anchoring reinforcement.

For quick calculations, use our Development Length Calculator.

Importance of Development Length

Providing the correct development length helps to:

• Transfer stresses safely from steel to concrete.
• Prevent bar pull-out.
• Improve bond strength.
• Increase structural safety.
• Reduce cracking.
• Ensure proper load transfer.
• Improve durability.

Lap Length of Reinforcement Bars

What is Lap Length?

Lap length is the overlapping length provided when two reinforcement bars are joined so that the required force can be transferred from one bar to another through the surrounding concrete.

The required lap length is not determined by a single universal multiplier such as 40D or 50D for every situation. It depends on the reinforcement grade, concrete grade, bar diameter, type of stress, bond conditions, member, detailing requirements and applicable code provisions.

Why Lap Length is Required

Lap splices are provided because:

• Standard bar lengths are limited.
• Reinforcement continues through long structural members.
• Construction occurs in stages.
• Damaged bars may need replacement.

Factors Affecting Lap Length

• Concrete grade.
• Steel grade.
• Bar diameter.
• Tension or compression.
• Structural member.
• Seismic detailing requirements.

Important Site Rule

Never reduce or assume lap length only from a generic thumb rule.

Always follow:

1. Approved structural drawings
2. Structural design calculations
3. Applicable IS code provisions
4. Project specifications
5. Engineer’s approved detailing

Good Lap Splicing Practices

• Avoid concentrating all laps at one location where prohibited by the design.
• Stagger laps where required.
• Maintain the specified spacing between bars.
• Ensure adequate concrete cover.
• Tie reinforcement securely before concreting.
• Do not cut reinforcement without approval.

For quick calculations, use our Lap Length Calculator.

Site Engineer Tip

Never reduce lap length to save steel. Incorrect lap lengths can significantly reduce the load-carrying capacity of reinforced concrete members.

Anchorage Length

What is Anchorage Length?

Anchorage Length is the portion of reinforcement embedded beyond a critical section to ensure full development of the bar force.

It helps prevent:

• Bar slippage.
• Pull-out failure.
• Anchorage failure.
• Cracking near supports.

Anchorage is commonly provided in:

• Beams.
• Columns.
• Footings.
• Slabs.
• Cantilevers.

Methods of Anchorage

• Straight embedment.
• Standard hooks.
• 90° bends.
• 135° hooks.
• U-hooks.

Proper anchorage improves bond performance and structural safety.

Hooks and Standard Bends

Hooks improve anchorage when sufficient straight embedment cannot be provided.

Common Hook Types

90° Hook

Used in:

• Beam reinforcement.
• Slabs.
• Footings.

135° Hook

Commonly used in:

• Earthquake-resistant structures.
• Stirrups.
• Seismic detailing.

180° Hook

Used in:

• Stirrups.
• Ties.
• Special reinforcement details.

Advantages

• Better anchorage.
• Reduced bar slippage.
• Improved seismic performance.
• Increased bond strength

Cranks (Bent-Up Bars)

Cranked bars are reinforcement bars bent upward at an angle, traditionally used to resist shear forces in beams and slabs.

Although many modern designs rely mainly on stirrups for shear reinforcement, cranked bars may still be specified in certain projects by the structural engineer.

Advantages

• Improve shear resistance.
• Improve load transfer.
• Provide additional reinforcement where required.

Always follow the structural drawings regarding the use of cranked bars.

Clear Cover to Reinforcement

Clear cover is the distance between the outer surface of reinforcement and the nearest surface of the concrete member.

Adequate cover is required to help protect reinforcement from corrosion, provide fire resistance and maintain the required durability and bond conditions.

The required nominal cover depends on:

• Exposure condition
• Structural member
• Fire resistance requirements
• Bar diameter
• Durability requirements
• Concrete grade
• Project specifications
• Applicable code provisions

Site Engineer Rule

Always follow the cover specified in the approved structural drawings and applicable code requirements.

Use approved cover blocks of the specified thickness. Do not use bricks, stones or timber pieces as substitutes.

For quick calculations, use our Concrete Cover Calculator.

Typical Nominal Cover (General Guidance)

Note: The required cover depends on exposure conditions, fire resistance requirements, and project specifications. Always follow IS 456:2000 and the approved structural drawings.

Importance of Proper Cover

Proper clear cover helps to:

• Increase durability.
• Improve fire resistance.
• Protect reinforcement against corrosion.
• Ensure adequate bond.
• Extend structural service life.

Site Engineer Tip

Always use approved concrete cover blocks of the specified thickness. Do not use bricks, stones, or wooden pieces as substitutes.

Common Site Mistakes

Avoid these mistakes:

• Insufficient development length.
• Short lap lengths.
• Incorrect hook details.
• Missing anchorage.
• Using damaged cover blocks.
• Inadequate clear cover.
• Lapping bars at the same location.
• Cutting reinforcement without approval.
• Poor tying of lap splices.
• Ignoring structural drawings.

Quick Revision

What is a Bar Bending Schedule (BBS)?

A Bar Bending Schedule (BBS) is a tabulated document that lists the details of every reinforcement bar used in a reinforced concrete (RCC) structure. It includes the bar mark, diameter, shape, cutting length, quantity, unit weight, and total weight.

BBS helps engineers, contractors, and site supervisors accurately estimate steel quantities, reduce wastage, and ensure proper fabrication and placement.

Objectives of BBS

• Estimate reinforcement quantities accurately.
• Reduce steel wastage.
• Simplify fabrication.
• Improve construction planning.
• Reduce material costs.
• Facilitate quality control.
• Improve project documentation.

Benefits of BBS

• Accurate steel estimation.
• Better inventory control.
• Easier bar identification.
• Faster site execution.
• Improved quality assurance.
• Reduced errors during bar cutting and bending.

Components of a Bar Bending Schedule

A standard BBS generally contains:

Example BBS Table

Cutting Length of Reinforcement Bars

The cutting length is the total length of a reinforcement bar before bending. It includes the clear dimensions of the member plus allowances for hooks, bends, and anchorage, while deducting bend allowances where applicable.

General Considerations

• Clear dimensions of the member.
• Concrete cover.
• Hook length.
• Bend allowance.
• Anchorage length.
• Crank length (if provided).

Always calculate cutting lengths according to the structural drawings and project specifications.

Example

For a beam with:

• Overall length = 5000 mm
• Clear cover = 25 mm at both ends

Straight bar cutting length:

5000 − (25 × 2)

= 4950 mm

Additional hook or anchorage lengths should be added if required by the design.

Site Engineer Tip

Measure reinforcement twice before cutting. Incorrect cutting lengths can result in material wastage and delays.

Standard Shape Codes

Standard shape codes are used to identify the bending configuration of reinforcement bars.

Common shapes include:

• Straight bar
• L-shaped bar
• U-shaped bar
• Closed stirrup
• Rectangular link
• Circular link
• Cranked bar
• Bent-up bar

These standardised shapes simplify communication between designers, fabricators, and site engineers.

Steel Weight Calculation

The weight of reinforcement steel is commonly calculated using the formula:

Weight (kg/m) = D² ÷ 162

Where:

• D = Diameter of the bar in millimetres

Example

For a 16 mm bar:

Weight = 16² ÷ 162

= 256 ÷ 162

≈ 1.58 kg/m

Common Unit Weights

Practical Example

• Bar Diameter = 20 mm
• Cutting Length = 6.0 m
• Quantity = 12

Total Length:

12 × 6 = 72 m

Unit Weight:

2.47 kg/m

Total Weight:

72 × 2.47 = 177.84 kg

Reinforcement Detailing

Proper detailing ensures reinforcement performs as intended.

Beam Reinforcement

• Bottom bars resist positive bending.
• Top bars resist negative bending.
• Stirrups resist shear.
• Development length must be provided at supports.

Column Reinforcement

• Longitudinal bars carry axial load.
• Lateral ties confine the concrete core.
• Lap splices should be staggered where required.

Slab Reinforcement

• Main bars are placed in the shorter span direction for one-way slabs.
• Distribution bars are placed perpendicular to the main bars.
• Adequate cover should be maintained.

Footing Reinforcement

• Bottom reinforcement resists tensile stresses.
• Proper anchorage into columns is essential.
• Cover blocks should maintain the specified cover.

Staircase Reinforcement

• Main bars follow the slope of the stair.
• Distribution bars are placed perpendicular to the main reinforcement.
• Landing reinforcement should be continuous where specified.

Common Reinforcement Detailing Mistakes

Avoid the following:

• Incorrect bar spacing.
• Insufficient clear cover.
• Short development length.
• Inadequate lap length.
• Poorly tied reinforcement.
• Missing cover blocks.
• Incorrect stirrup spacing.
• Cutting bars without approval.
• Using the wrong bar diameter.
• Omitting reinforcement shown in the structural drawings.

How to Check Reinforcement Steel at Site

Before reinforcement steel is accepted for structural work, the site engineer or QA/QC team should verify the following:

1. Check Steel Grade

Compare the grade marked on the bar and material documents with the approved structural drawings.

2. Check Manufacturer Identification

Verify the manufacturer’s identification and traceability information.

3. Check Diameter

Measure the bar using an appropriate measuring instrument and compare it with the specified diameter.

4. Check Surface Condition

Inspect the bars for:

• Excessive corrosion
• Deep pitting
• Cracks
• Lamination
• Mechanical damage
• Improper deformation
• Oil or grease contamination

5. Check Material Test Certificate

Review the applicable material/test certificate and verify the reported properties against project requirements.

6. Check Test Requirements

Where required, verify relevant tensile, bend, rebend and other specified tests through approved testing arrangements.

7. Check Storage

Store reinforcement above ground and protect it from standing water, contamination and damage.

8. Record the Material

Maintain batch/lot identification, delivery details, test certificates and inspection records for traceability.

Site Engineer Tip

Do not accept reinforcement only by visually checking the bar colour or surface appearance. Grade identification, documentation and required testing are important parts of reinforcement quality control.

This section is much more valuable for your target audience than repeating generic definitions.

Common Reinforcement Steel Questions

Which steel grade is commonly used for RCC construction?

Fe500 and Fe500D are widely encountered reinforcement grades in RCC construction, but the correct grade depends on the structural design, drawings, project specifications and applicable standards.

What is the difference between Fe500 and Fe500D?

Both have a 500 MPa strength level, while the D category has enhanced ductility requirements. The applicable standard and project design should be checked before selecting the grade.

Is higher-grade steel always better?

No. Higher strength does not automatically mean that a particular grade is suitable for every structure. Grade selection must consider design, ductility, detailing, seismic requirements and applicable standards.

What is IS 1786?

IS 1786 is the Indian Standard covering high-strength deformed steel bars and wires for concrete reinforcement. It specifies requirements relating to reinforcement steel grades, properties, dimensions, testing and other quality requirements.

How is reinforcement steel weight calculated?

A commonly used theoretical formula is:

Weight (kg/m) = D² ÷ 162

where D is the nominal bar diameter in millimetres.

Frequently Asked Questions (FAQs)

1. What is a Bar Bending Schedule?

A BBS is a document that provides complete reinforcement details, including cutting length, quantity, shape, and weight.

2. Why is BBS important?

It improves steel estimation, reduces wastage, and simplifies reinforcement fabrication and installation.

3. How is steel weight calculated?

A commonly used formula is:

Weight (kg/m) = D² ÷ 162

where D is the bar diameter in millimetres.

4. What is cutting length?

It is the total length of a reinforcement bar before bending, including allowances required by the detailing.

5. Why is reinforcement detailing important?

Proper detailing ensures the reinforcement can safely transfer loads, achieve adequate bond, and satisfy structural design requirements.

You can also read our Civil Engineering Calculators

Steel Bar Weight Calculator

Calculate the weight of TMT bars, reinforcement steel, and rebars using the standard D²/162 formula for accurate quantity estimation.

Cement, Sand & Aggregate Calculator for Concrete (M5 to M20)

Estimate the quantities of cement, sand, and aggregate required for nominal concrete mixes ranging from M5 to M20 grades.

Concrete Volume Calculator for Slabs, Beams, Columns, and Footings

Calculate the volume of concrete required for various RCC structural elements quickly and accurately.

Brick Quantity Calculator

Determine the number of bricks required for walls, partitions, and masonry construction works.

Bar Bending Schedule (BBS) Calculator for Construction Sites

Prepare accurate bar-bending schedules and calculate steel reinforcement quantities for RCC structures.

Plaster Quantity Calculator

Estimate cement, sand, and water requirements for internal and external plastering works.

House Construction Cost Calculator

Calculate the approximate cost of residential building construction based on area, specifications, and construction standards.

Tile Quantity Calculator

Estimate the number of floor and wall tiles required for rooms, kitchens, bathrooms, and other spaces.

Paint Quantity Calculator

Calculate paint requirements for walls, ceilings, and exterior surfaces while minimising wastage and cost.

Lap Length Calculator for Reinforcement Steel Bars

Determine the required lap splice length for steel reinforcement bars in accordance with standard engineering practices and design requirements.

Conclusion

Reinforcement steel is a critical component of reinforced concrete construction. Selecting the correct grade, verifying material quality, maintaining proper storage, checking test certificates and following approved reinforcement detailing are essential for safe and durable RCC construction.

A site engineer should not rely only on nominal grade values or general thumb rules. Reinforcement grade, development length, lap length, anchorage, clear cover, bar spacing and detailing must be checked against the approved structural drawings, project specifications and applicable Indian Standards.

For practical construction work, combine code requirements with proper site inspection, quality documentation and accurate reinforcement quantity calculations.

About T Square Civil Engineering

T Square Civil Engineering is an educational platform dedicated to helping civil engineering students, site engineers, QA/QC professionals, and construction enthusiasts understand engineering concepts through practical explanations, IS Code references, calculators, solved examples, interview questions, and site-oriented learning resources.

Our mission is to bridge the gap between engineering theory and construction practice by delivering reliable, easy-to-understand, and industry-relevant content.

Disclaimer

This article is intended for educational and informational purposes only. Although every effort has been made to ensure accuracy, readers should always refer to the latest applicable Indian Standards (IS Codes), project specifications, and guidance from qualified engineers before applying any procedure in practice. TSquareCivil.com is not responsible for any loss or damage arising from the use of this information.
