What is a Concrete Volume Calculator?
A concrete volume calculator is a tool used in day-to-day life to determine the quantity of concrete required for construction works. It helps supervisors, engineers, and contractors accurately estimate the concrete requirements for any structure to be constructed before placing orders.
Accurate concrete estimation helps the following:
- Reduce wastage
- Minimise construction costs
- Improve project planning
- Prevent shortages during concreting activities
Below is the concrete volume Calculator for the calculation of Concrete Quantity:
Concrete Volume Calculator
Calculate concrete quantity for slabs, footings, columns, beams and PCC works.
Formula Used for the Concrete Volume Calculation:
The concrete volume is calculated using the following formula:
Where:
- V = Volume of Concrete (m³)
- L = Length (m)
- W = Width (m)
- D = Depth or Thickness (m)
Take one Example: Slab Concrete Calculation
Assume: The Length of the slab = 15 m
The Width of the Slab = 10 m
and The Thickness of the slab = 0.15 m
Calculation: The slab concrete quantity is calculated in Volume,
The volume of the slab concrete = 15 x 10 x 0.15 = 22.5m³
Result
Concrete Required = 22.5 Cubic Meter
Dry Volume Calculation of Concrete:
To estimate the cement, sand, and aggregate quantities required for making the concrete, the dry volume calculation is required:
The Dry volume of concrete = Wet volume of concrete x 1.54
For Example:
If the Wet volume of concrete required for the structure =22.5 m³
Then the dry volume required = 22.5×1.54=34.65m³
This calculation of dry volume helps during the mix-design calculations.
The Typical thickness of Structures for Concrete Volume calculation is given in the table below
| Structure | Typical Thickness |
|---|---|
| Floor PCC | 100 mm |
| Roof Slab | 125–150 mm |
| Footpath | 75–100 mm |
| Water Tank Base | 150–200 mm |
| Foundation PCC | 100–150 mm |
Why Calculate Concrete Volume?
Incorrect concrete estimation can result in:
- Material shortages
- Delays in construction
- Increased transportation costs
- Excess concrete wastage
Using a concrete volume calculator ensures efficient material management.

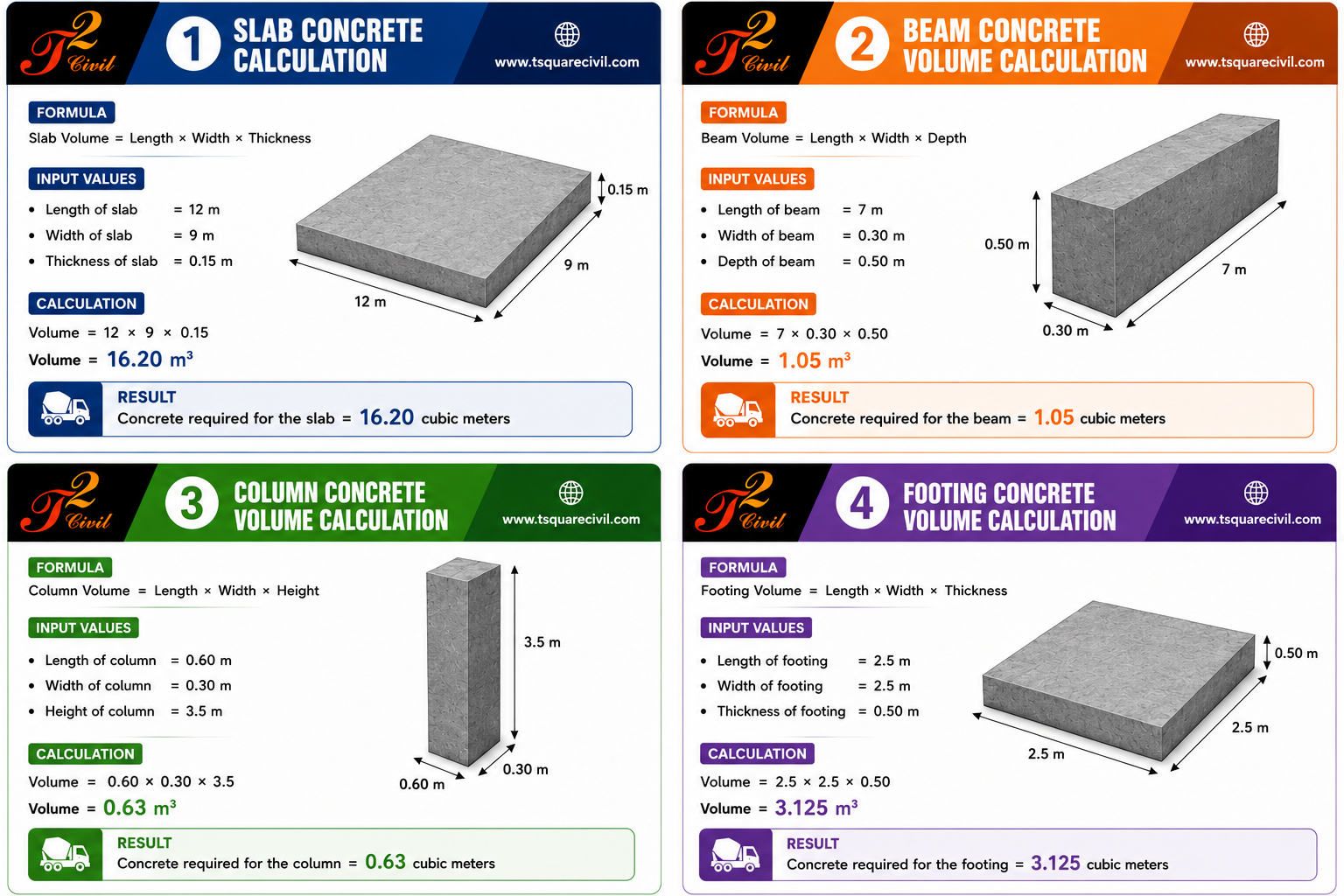

Applications
This calculator can be used for the concrete quantity calculation for the followings
Slabs
Residential and commercial floor slabs.
Footings
Isolated, combined, and raft foundations.
Columns
RCC/CC column concrete estimation.
Beams
Beam casting quantity calculations.
Pavements
Road and pavement concrete estimation.
FAQ Section
1. How is concrete volume measured?
Answer: Concrete volume is generally measured in cubic meters (m³) or cubic feet (ft³).
2. What is the formula for concrete volume?
Answer: Volume = Length × Width × Depth.
3. Why is concrete ordered in cubic meters?
Answer: Ready-mix concrete suppliers deliver concrete based on cubic meter volume requirements.
4. Should wastage be considered during concrete quantity calculation?
Answer: Yes, generally 5% to 10% of wastage is considered, which may be for site wastage and uneven surfaces.
5. How much concrete is required for a 1000 sq. ft. slab?
Answer: Let us consider a slab thickness of 125 mm
1000 sq.ft ≈ 92.9 m²
Volume = 92.9 × 0.125≈ 11.6 m³
