by Concrete mix design quantities are normally calculated using a defined moisture condition for aggregates. However, the sand and coarse aggregate actually used in the laboratory or batching plant may be wetter or drier than that assumed condition.
If this difference is ignored, the actual amount of free water in concrete can change.
That can change:
- water-cement ratio;
- water-cementitious ratio;
- workability;
- slump;
- strength;
- bleeding;
- segregation; and
- durability.
Moisture correction is therefore an important part of both laboratory trial mixing and day-to-day concrete production.
This guide explains saturated surface dry condition, water absorption, moisture content, free surface moisture, aggregate batch-weight correction and mixing-water correction with practical examples.
For the complete sequence, visit our Concrete Mix Design Hub, Water-Cement Ratio in Concrete, Material Tests Required Before Concrete Mix Design and Concrete Trial Mix Procedure.
Page Contents
Why Is Moisture Correction Required in Concrete Mix Design?
Aggregates are porous materials.
They can:
- absorb water into their pores; or
- carry water on their external surface.
The moisture condition of aggregate therefore affects the amount of water entering the concrete.
Suppose a concrete mix has been designed for:
Free water = 180 kg/m³
If wet sand introduces an additional 20 kg/m³ of free water and no correction is made, the concrete may actually contain:
180 + 20 = 200 kg/m³ of effective water
If cement content is:
400 kg/m³
the intended water-cement ratio is:
180 ÷ 400 = 0.45
but the actual ratio becomes:
200 ÷ 400 = 0.50
This apparently small batching error can significantly affect concrete performance.
For the effect of excess water on strength and durability, see our Water-Cement Ratio in Concrete guide.

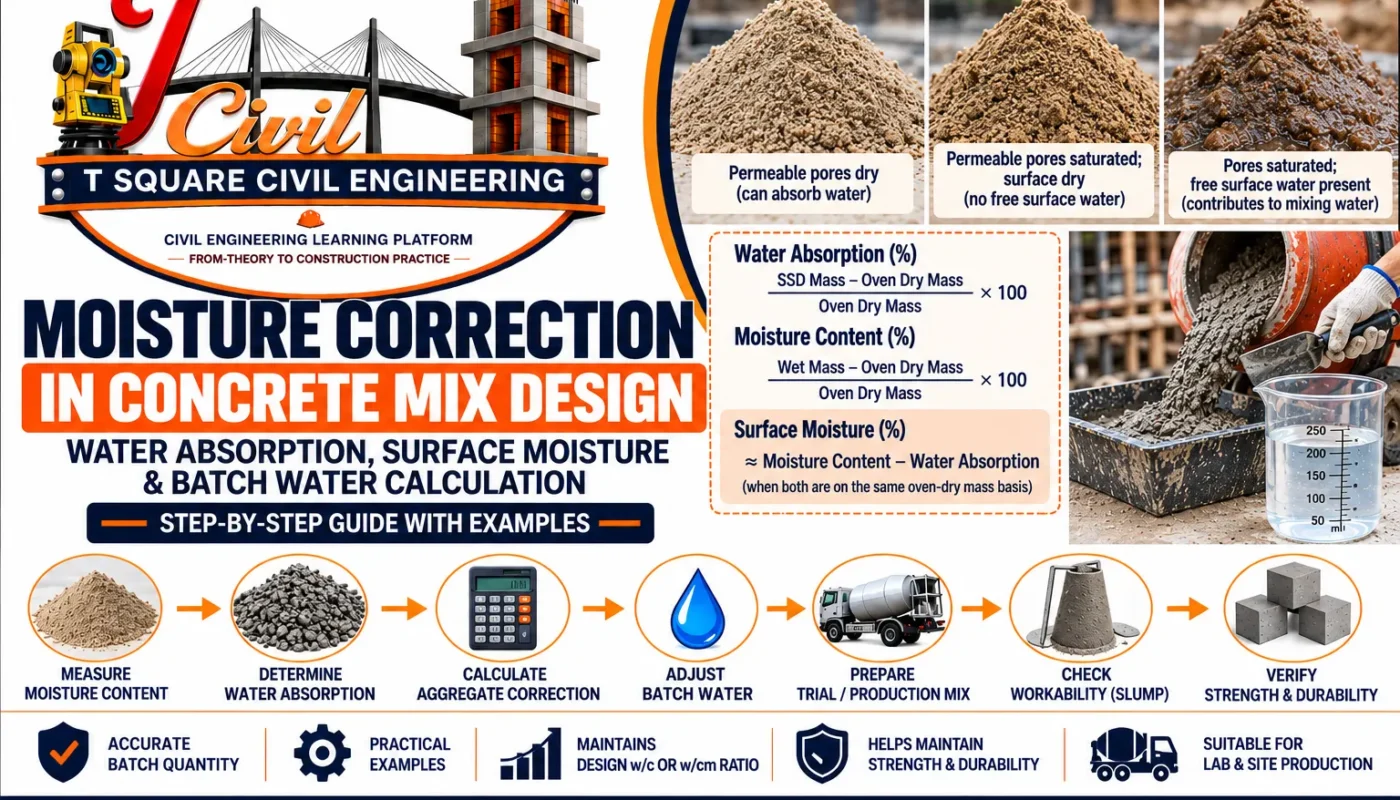

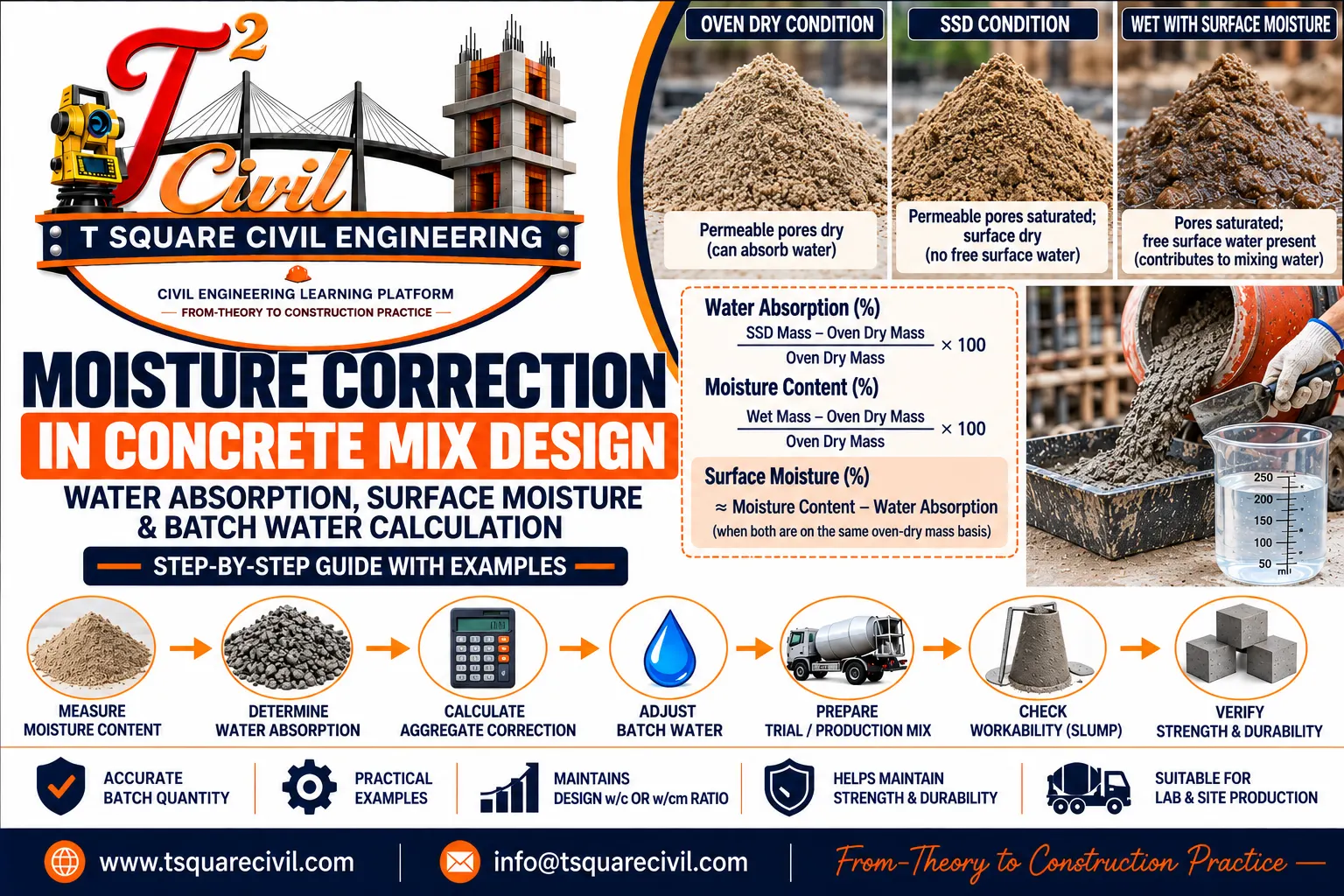

Aggregate Moisture Conditions
Before calculating moisture correction, it is important to understand the common aggregate moisture conditions.
Oven-Dry Condition
In oven-dry condition, moisture has been removed from the aggregate pores as far as the specified test procedure permits.
The aggregate can therefore absorb water when introduced into fresh concrete.
Air-Dry or Partly Dry Condition
The aggregate contains some internal moisture but its pores are not fully saturated.
It can still absorb some mixing water.
Saturated Surface Dry Condition
In saturated surface dry, or SSD, condition:
- the internal permeable pores are considered filled with water; and
- the external surface is dry.
SSD is an important reference condition in concrete mix calculations.
At SSD condition, the aggregate neither contributes free surface water to the concrete nor requires additional water to fill its absorptive capacity.
Wet Aggregate With Surface Moisture
When aggregate contains moisture beyond SSD condition, water remains on its surface.
This water contributes to the effective mixing water in concrete.
The separately added batch water should therefore be reduced.
What Is Water Absorption of Aggregate?
Water absorption represents the quantity of water absorbed by an aggregate between its oven-dry and saturated surface dry conditions.
It is commonly expressed as a percentage of the oven-dry mass.
The basic expression is:
Water Absorption (%) = [(SSD Mass − Oven-Dry Mass) ÷ Oven-Dry Mass] × 100
For example:
Oven-dry mass = 1000 g
SSD mass = 1015 g
Then:
Water absorption = [(1015 − 1000) ÷ 1000] × 100
= 1.5%
For the laboratory procedure, see our Specific Gravity and Water Absorption of Aggregate guide.
What Is Moisture Content of Aggregate?
Moisture content represents the total water present in the aggregate at the time of testing relative to the selected reference dry mass.
A commonly used expression based on oven-dry mass is:
Moisture Content (%) = [(Wet Mass − Oven-Dry Mass) ÷ Oven-Dry Mass] × 100
For example:
Wet aggregate mass = 1050 g
Oven-dry mass = 1000 g
Then:
Moisture content = [(1050 − 1000) ÷ 1000] × 100
= 5.0%
The moisture content should not automatically be treated as free surface moisture.
Part of that 5% may simply represent water held inside the aggregate pores up to SSD condition.
Water Absorption vs Moisture Content
This distinction is very important.
Suppose:
Water absorption = 1.5%
and:
Actual total moisture content = 5.0%
The first 1.5% represents the amount needed to bring the aggregate from oven dry to SSD.
The remaining moisture is approximately associated with moisture above SSD.
Therefore:
Moisture above SSD = 5.0 − 1.5
= 3.5% of oven-dry aggregate mass
This water can contribute to the free water in the concrete.
If the actual moisture content is lower than absorption, the aggregate is drier than SSD and can absorb water from the concrete instead.
Why SSD Is Important in Mix Design
SSD provides a convenient reference condition because the aggregate is neither contributing external water nor demanding water to satisfy absorption.
Concrete mix calculations commonly use aggregate properties referenced to SSD conditions.
When actual aggregate moisture differs from SSD, both aggregate mass and batch-water quantity may require correction.
This is one of the most common differences between a theoretical concrete mix-design sheet and actual batching.
Your Concrete Mix Design Calculator as per IS 10262:2019 should therefore be used with representative moisture and absorption data rather than assumed values wherever actual data are available.
Exact Moisture-Correction Method
Suppose the concrete mix design specifies aggregate quantity on an SSD basis.
Let:
WSSD = aggregate mass required at SSD condition
A = water absorption, % of oven-dry mass
M = actual total moisture content, % of oven-dry mass
Step 1: Convert SSD Aggregate Mass to Oven-Dry Mass
Use:
WOD = WSSD ÷ (1 + A/100)
where:
WOD = equivalent oven-dry aggregate mass.
Step 2: Calculate Actual Wet Aggregate Batch Mass
Use:
Wwet = WOD × (1 + M/100)
This is the actual wet aggregate quantity required to provide the same amount of dry aggregate solids.
Step 3: Calculate Water Contribution or Water Demand
Use:
Water Correction = WOD × (M − A) / 100
If the value is positive, the aggregate contains water above SSD and contributes free water.
That quantity should normally be deducted from separately added mixing water.
If the value is negative, the aggregate is below SSD and can absorb water.
The magnitude of that negative value represents additional water that may need to be allowed for so the intended free-water content is maintained.
Fine Aggregate Moisture Correction Example
Consider a concrete mix requiring:
Fine aggregate at SSD = 700 kg/m³
Water absorption:
A = 1.5%
Actual moisture content:
M = 5.0%
Step 1: Calculate Oven-Dry Equivalent Mass
WOD = 700 ÷ 1.015
= 689.66 kg/m³
Step 2: Calculate Wet Fine Aggregate Batch Mass
Wwet = 689.66 × 1.05
= 724.14 kg/m³
Therefore, instead of batching 700 kg of SSD fine aggregate, approximately:
724.14 kg/m³ of the actual wet aggregate
is required to provide the same aggregate solids.
Step 3: Calculate Free Water Contributed
Water contribution = 689.66 × (5.0 − 1.5) ÷ 100
= 24.14 kg/m³
Therefore the wet fine aggregate contributes approximately:
24.14 kg/m³ of water above SSD
to the concrete.
The separately added mixing water should be reduced accordingly.
Coarse Aggregate Drier Than SSD Example
Consider:
Coarse aggregate at SSD = 1100 kg/m³
Water absorption:
A = 0.5%
Actual moisture content:
M = 0.2%
The aggregate is drier than SSD because:
0.2% < 0.5%
Step 1: Oven-Dry Equivalent Mass
WOD = 1100 ÷ 1.005
= 1094.53 kg/m³
Step 2: Actual Aggregate Batch Mass
Wwet = 1094.53 × 1.002
= 1096.72 kg/m³
Step 3: Water Correction
Water correction = 1094.53 × (0.2 − 0.5) ÷ 100
= −3.28 kg/m³
The negative result means the coarse aggregate is below SSD condition and may absorb approximately:
3.28 kg/m³ of water
from the concrete.
To maintain the intended free-water quantity, this water demand has to be considered.
Combined Fine and Coarse Aggregate Moisture Correction
Now combine the previous examples.
Design Data
Design free water:
180 kg/m³
Fine aggregate contribution:
+24.14 kg/m³
Coarse aggregate water demand:
−3.28 kg/m³
Net water contributed by aggregates:
24.14 − 3.28
= 20.86 kg/m³
Therefore, separately added batch water becomes:
180 − 20.86
= 159.14 kg/m³
The corrected batch quantities are approximately:
| Material | Design SSD Quantity | Corrected Batch Quantity |
|---|---|---|
| Fine aggregate | 700 kg/m³ | 724.14 kg/m³ |
| Coarse aggregate | 1100 kg/m³ | 1096.72 kg/m³ |
| Design free water | 180 kg/m³ | 159.14 kg/m³ added separately |
The total effective water remains approximately equal to the intended design value after the moisture correction.
Why Aggregate Batch Weight Also Changes
A common mistake is to adjust only the mixing water.
However, wet aggregate weighs more than the equivalent SSD or dry aggregate because it contains additional water.
Therefore, the batch mass of aggregate should also be corrected.
If the design requires a fixed quantity of aggregate solids but wet sand is weighed using the uncorrected SSD mass, the batch will contain less aggregate solids than intended.
Correct moisture adjustment therefore normally involves two corrections:
- correct the aggregate batch mass; and
- correct the separately added mixing water.
Simplified Moisture-Correction Logic
The practical logic can be remembered as follows.
If Moisture Content Is Greater Than Absorption
Aggregate is wetter than SSD.
Therefore:
increase wet aggregate batch mass
and
reduce separately added water
because the aggregate contributes free surface water.
If Moisture Content Equals Absorption
Aggregate is approximately at SSD condition.
Therefore:
no significant moisture correction is required relative to the SSD basis.
If Moisture Content Is Less Than Absorption
Aggregate is drier than SSD.
Therefore:
adjust aggregate batch mass
and
allow for water that may be absorbed by the aggregate
so that the intended free-water content is maintained.
Fine Aggregate Usually Requires More Attention
Fine aggregate often changes moisture condition more rapidly than coarse aggregate because of its:
- smaller particle size;
- larger surface area;
- stockpile behaviour; and
- exposure to rain and drying.
After rainfall, the moisture content of a sand stockpile can change significantly.
If the batching plant continues using the same water setting without updating the moisture correction, the effective water-cementitious ratio can change from batch to batch.
This is why fine-aggregate moisture should be monitored regularly in controlled concrete production.
Effect of Rainfall on Concrete Batching
Consider a sand stockpile before rainfall.
Suppose its surface moisture contribution is small.
After heavy rain, the wet sand may contribute a much larger quantity of water.
If 700 kg/m³ of fine aggregate is used, even a few percentage points of additional moisture can represent several tens of kilograms of water per cubic metre.
If the operator does not reduce the added water, the concrete may show:
- higher slump;
- reduced strength;
- more bleeding;
- increased segregation risk; and
- greater permeability.
Visual inspection alone is not sufficient for reliable moisture correction.
Moisture Correction and Water-Cement Ratio
Moisture correction is directly connected to the water-cement ratio.
Suppose:
Cement = 400 kg/m³
Design free water = 180 kg/m³
Therefore:
w/c = 180 ÷ 400
= 0.45
Now suppose wet aggregates contribute an uncorrected additional:
20 kg/m³
Actual effective water becomes:
200 kg/m³
Therefore:
Actual w/c = 200 ÷ 400
= 0.50
The approved design may state 0.45, but the concrete actually produced may be closer to 0.50.
For this reason, controlling free water is just as important as controlling the nominal quantity shown on the batching sheet.
Moisture Correction During Laboratory Trial Mixes
Moisture correction should be applied before preparing laboratory trial batches.
The aggregate moisture condition used in the laboratory should be measured or otherwise properly established.
The corrected batch quantities should then be calculated before weighing materials.
Otherwise, the concrete trial may appear to require more or less water than the design actually needs.
For the complete trial sequence, see our Concrete Trial Mix Procedure.
Moisture Correction During Production
Moisture correction is not only a laboratory calculation.
It should continue during production.
Concrete plants may use:
- laboratory moisture tests;
- rapid field methods;
- microwave or drying methods;
- moisture probes; or
- other approved measurement systems.
The exact method depends on plant facilities and the project quality-control plan.
Whatever method is used, the purpose is the same:
maintain the intended aggregate solids and effective free-water quantity.
Moisture Content Should Be Checked When Conditions Change
Moisture testing frequency should reflect actual production conditions.
Additional checks may be needed after:
- rainfall;
- aggregate washing;
- stockpile watering;
- change of stockpile;
- prolonged sunshine;
- long production breaks; or
- noticeable changes in concrete slump.
A moisture value measured in the morning should not automatically be assumed valid throughout the entire day if site conditions change significantly.
Water Absorption Does Not Change Every Hour
Water absorption is mainly a material property.
It generally does not fluctuate during the day in the same way as surface moisture.
However, absorption should be rechecked when there is a significant change in:
- aggregate source;
- quarry;
- rock type;
- processing condition; or
- material quality.
Moisture content, by contrast, can change rapidly depending on storage and weather conditions.
Do Not Confuse Surface Moisture With Total Moisture
This is a common calculation error.
Total moisture may include:
absorbed moisture + moisture above SSD
Only the moisture above SSD directly contributes free surface water relative to an SSD-based design.
Therefore, simply deducting the entire measured moisture percentage from the batch water can produce an incorrect correction.
Water absorption must also be considered.
Example of a Common Wrong Calculation
Suppose:
Fine aggregate = 700 kg
Total moisture = 5%
Absorption = 1.5%
A wrong approach is:
700 × 5% = 35 kg water
and then deducting all 35 kg from the mixing water.
This incorrectly treats all aggregate moisture as free water.
Part of the aggregate moisture is associated with bringing the aggregate to SSD condition.
The correction should distinguish between:
total moisture
and
absorption.
The exact SSD-based method shown earlier is therefore preferred.
Surface Moisture Testing
Aggregate surface moisture can be determined using an appropriate approved laboratory or field method.
IS aggregate test methods include procedures related to:
- water absorption; and
- determination of surface moisture in fine aggregate.
The selected test method should match the project laboratory procedure and the moisture basis used in calculations.
Do not mix values measured on different mass-reference bases without converting them correctly.
Moisture Correction With Manufactured Sand
Manufactured sand can also carry significant moisture.
Its particle shape, fines content and stockpile drainage behaviour may differ from natural river sand.
Therefore, do not assume that manufactured sand has negligible moisture merely because it appears relatively coarse.
The same principles apply:
- determine absorption;
- establish actual moisture;
- calculate aggregate batch correction; and
- adjust batch water.
Moisture Correction With Multiple Aggregate Fractions
A concrete mix may contain:
- 10 mm coarse aggregate;
- 20 mm coarse aggregate;
- natural sand;
- manufactured sand; or
- blended fine aggregates.
Each aggregate fraction can have a different:
- specific gravity;
- absorption;
- moisture content; and
- batch quantity.
Where necessary, calculate the moisture correction for each aggregate fraction separately.
Then combine the water contributions and demands to determine the final batch-water correction.
Moisture Correction With Admixtures
Chemical admixture solution may also contain water.
Whether this water is included in the effective water calculation depends on the applicable mix-design procedure, admixture characteristics and project requirements.
The treatment should be consistent with the approved mix-design method.
Do not focus so heavily on aggregate moisture that other meaningful water sources are ignored.
Practical Batch Sheet Example
A batch sheet can include a section like this:
| Material | SSD Design Qty | Absorption | Actual Moisture | Corrected Batch Qty | Water Contribution / Demand |
|---|---|---|---|---|---|
| Fine aggregate | 700 kg | 1.5% | 5.0% | 724.14 kg | +24.14 kg |
| Coarse aggregate | 1100 kg | 0.5% | 0.2% | 1096.72 kg | −3.28 kg |
| Net aggregate effect | — | — | — | — | +20.86 kg |
| Design free water | — | — | — | — | 180.00 kg |
| Water to add separately | — | — | — | — | 159.14 kg |
The exact format may differ from project to project, but the principle should remain traceable.
Recommended Moisture-Correction Workflow
A practical sequence is:
Confirm SSD design quantities → Determine aggregate absorption → Measure actual aggregate moisture → Convert SSD quantity to oven-dry equivalent → Calculate actual wet batch quantity → Calculate aggregate water contribution or demand → Sum all aggregate water corrections → Correct separately added mixing water → Verify water-cementitious ratio → Prepare trial or production batch
This workflow should be applied consistently so that the actual produced concrete reflects the approved mix design.
Common Moisture-Correction Mistakes
Deducting Total Moisture as Free Water
Total moisture includes absorbed water. Only the portion relative to the chosen reference condition should be treated as free-water contribution.
Correcting Water but Not Aggregate Weight
Wet aggregate mass must also be adjusted to maintain the intended quantity of aggregate solids.
Assuming Sand Moisture Is Constant
Fine aggregate moisture can change significantly during the day.
Ignoring Moisture After Rain
Rainfall can materially alter the free-water contribution from aggregate stockpiles.
Using Absorption From Another Aggregate Source
Absorption should represent the material actually used.
Using Visual Inspection Instead of Measurement
Wet aggregate can be difficult to assess accurately by appearance alone.
Mixing Different Moisture Bases
Moisture percentages expressed relative to oven-dry mass should not be combined blindly with values expressed on another basis.
Forgetting Moisture Correction During Trial Mixes
Laboratory trials should use corrected batch quantities just like production concrete.
Frequently Asked Questions
What is moisture correction in concrete mix design?
Moisture correction is the adjustment of aggregate batch mass and separately added water to account for the actual moisture condition of the aggregates relative to the moisture basis used in the mix design.
Why is SSD condition used in concrete mix design?
SSD provides a reference condition in which aggregate pores are considered saturated but no free water remains on the surface. This makes it convenient for aggregate volume and water corrections.
What happens if sand contains free surface moisture?
The sand contributes additional water to the concrete. The wet aggregate batch mass is increased appropriately and the separately added mixing water is reduced.
What happens if aggregate is drier than SSD?
The aggregate may absorb water from the concrete. The batch quantities and water allowance should be adjusted so that the intended free-water content is maintained.
Is moisture content the same as water absorption?
No. Water absorption is primarily a material property representing water held between oven-dry and SSD conditions. Moisture content represents the actual water present in the aggregate at the time of testing.
Is all moisture in wet sand free water?
No. Some moisture may be absorbed inside the aggregate pores. Only moisture above the chosen SSD reference condition contributes free surface water relative to an SSD-based design.
Should aggregate weight also be corrected?
Yes. Wet aggregate mass differs from SSD or dry aggregate mass. Both aggregate mass and water quantity may require correction.
Which aggregate usually needs the most frequent moisture correction?
Fine aggregate often requires more frequent checking because its surface moisture can change rapidly with rainfall, washing and drying conditions.
Should moisture correction be done during trial mixes?
Yes. The actual aggregate moisture condition should be considered during laboratory trial mixing.
Does moisture correction affect the water-cement ratio?
Yes. Uncorrected aggregate water can increase or decrease the actual free-water quantity and therefore change the effective water-cement or water-cementitious ratio.
Related Concrete Mix Design Resources
Continue with these resources:
Water-Cement Ratio in Concrete
Material Tests Required Before Concrete Mix Design
Concrete Mix Design Calculator as per IS 10262:2019
Specific Gravity and Water Absorption of Aggregate
Conclusion
Moisture correction is essential for converting a theoretical concrete mix design into accurate laboratory and production batch quantities.
The process should account for both:
aggregate mass correction
and
mixing-water correction.
Where aggregate contains moisture above SSD, it contributes water to the concrete and the separately added batch water is reduced.
Where aggregate is drier than SSD, it may absorb water and the batch-water requirement must be adjusted accordingly.
The most reliable approach is to calculate corrections from the actual:
SSD design mass, absorption and measured moisture content.
This helps maintain the intended:
water-cementitious ratio, workability, strength and durability.
The practical sequence is:
measure moisture → calculate aggregate correction → calculate water correction → batch concrete → verify workability → maintain production control.
Engineering note: Always use the moisture-measurement method, reference mass basis, aggregate test data, applicable standards and project quality-control procedure adopted for the project. Do not combine percentages reported on different bases without proper conversion.
