by Fine aggregate grading is an important input in concrete mix design.
Two sands may both be called fine aggregate, but they may contain very different proportions of coarse, medium and fine particles.
This difference affects:
- fine aggregate quantity;
- coarse aggregate quantity;
- water demand;
- paste requirement;
- workability;
- cohesiveness;
- segregation resistance;
- pumpability; and
- concrete finishing.
IS 383:2016 classifies fine aggregate into four grading zones:
Zone I
Zone II
Zone III
and
Zone IV
Zone I represents relatively coarser fine aggregate, while the grading becomes progressively finer towards Zone IV.
The grading zone should be determined from an actual sieve analysis.
It should not be selected only from:
- appearance;
- source;
- sand colour;
- whether the material is river sand or manufactured sand; or
- a previous laboratory report from another stockpile.
This article explains how the grading zones are determined, the IS 383 limits, their effect on IS 10262 concrete mix proportioning, and how to use grading-zone information correctly during trial mix development.
For the complete learning sequence, visit our Concrete Mix Design Hub and Concrete Mix Design Procedure as per IS 10262:2019.
Page Contents
What Is Fine Aggregate?
Fine aggregate is aggregate consisting mainly of particles passing the 4.75 mm IS sieve, with only the permitted quantity of larger particles.
Fine aggregate used in concrete may include:
- natural sand;
- crushed stone sand;
- crushed gravel sand;
- manufactured sand meeting the applicable requirements; or
- an approved combination of fine aggregates.
Its suitability cannot be judged from particle size alone.
Other important properties include:
- specific gravity;
- water absorption;
- moisture content;
- particle shape;
- surface texture;
- fines content;
- deleterious materials; and
- overall grading.
For the complete pre-design testing requirements, see our Material Tests Required Before Concrete Mix Design.

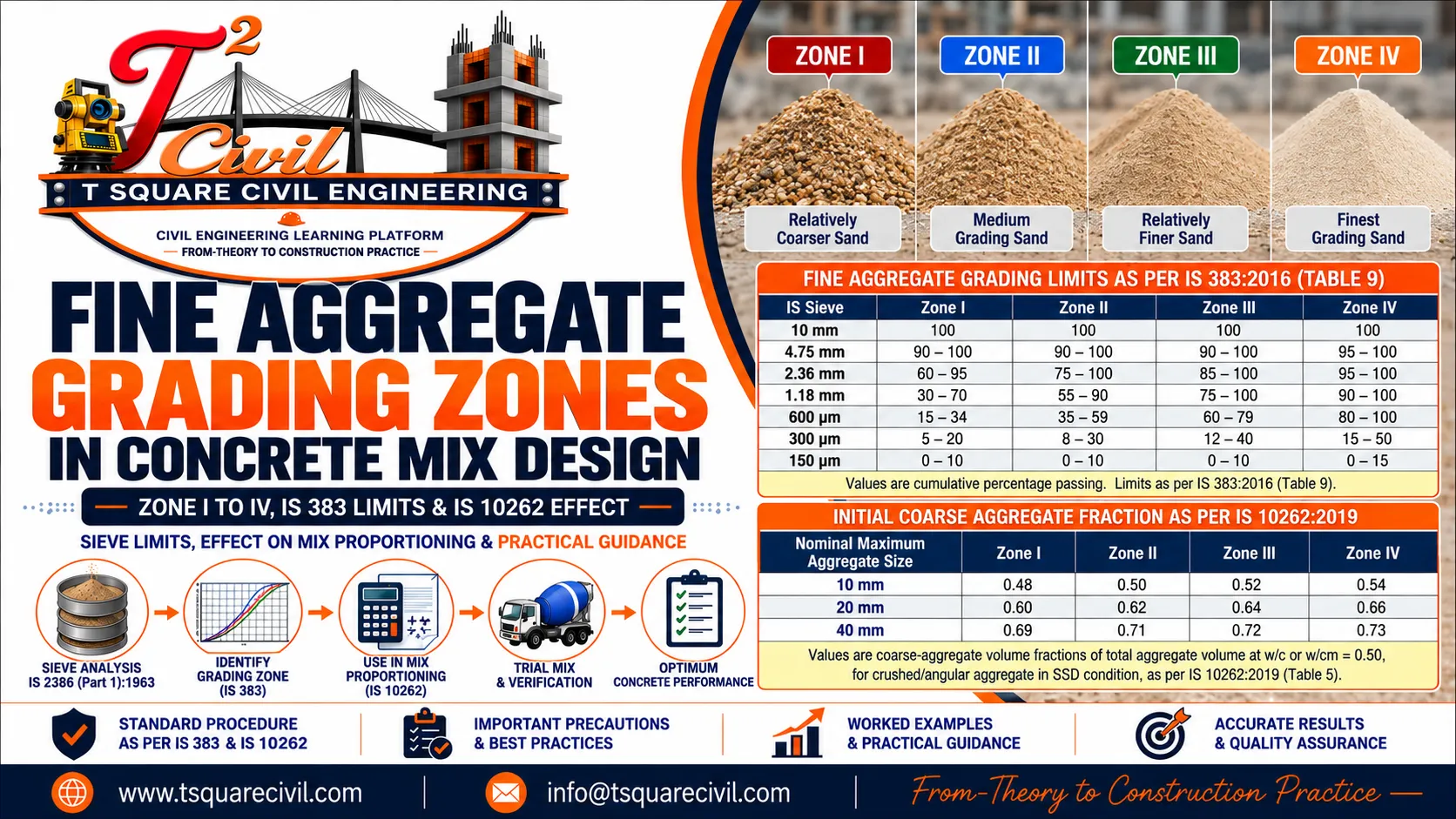

What Is a Fine Aggregate Grading Zone?
A grading zone describes the particle-size distribution of fine aggregate.
The aggregate is passed through a series of standard IS sieves, and the percentage passing each sieve is calculated.
The results are compared with the limits specified in IS 383.
The sand is then described as belonging to:
Grading Zone I, II, III or IV
provided its particle-size distribution falls within the applicable limits.
The grading zone is therefore not determined from one sieve only.
The complete sieve-analysis result should be checked.
Zone I to Zone IV – General Meaning
A simple way to understand the zones is:
| Grading Zone | General Nature |
|---|---|
| Zone I | Relatively coarse fine aggregate |
| Zone II | Medium-coarse grading |
| Zone III | Relatively fine grading |
| Zone IV | Finest grading zone |
This is only a general description.
The actual classification must be based on the measured percentage passing each applicable sieve.

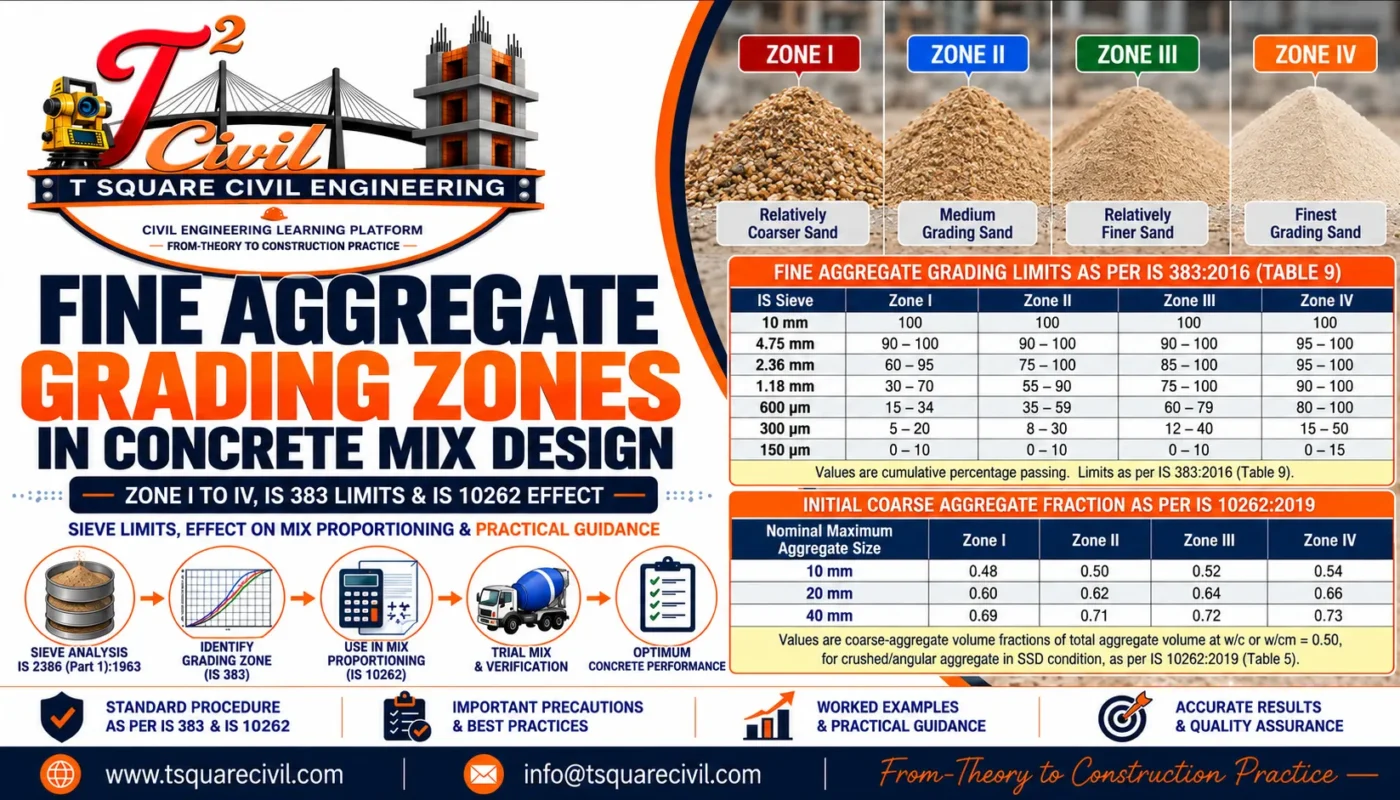

Fine Aggregate Grading Limits as per IS 383:2016
The grading limits for fine aggregate are given below.
| IS Sieve | Zone I | Zone II | Zone III | Zone IV |
|---|---|---|---|---|
| 10 mm | 100 | 100 | 100 | 100 |
| 4.75 mm | 90–100 | 90–100 | 90–100 | 95–100 |
| 2.36 mm | 60–95 | 75–100 | 85–100 | 95–100 |
| 1.18 mm | 30–70 | 55–90 | 75–100 | 90–100 |
| 600 µm | 15–34 | 35–59 | 60–79 | 80–100 |
| 300 µm | 5–20 | 8–30 | 12–40 | 15–50 |
| 150 µm | 0–10 | 0–10 | 0–10 | 0–15 |
These values are cumulative percentages passing.
Therefore, if a sample has:
60% passing the 600 µm sieve
it means 60% of the sample mass is finer than 600 µm.
Why the 600 µm Sieve Is Important
The percentage passing the 600 µm sieve is particularly useful for distinguishing the grading zones.
The approximate ranges are:
Zone I:
15–34%
Zone II:
35–59%
Zone III:
60–79%
Zone IV:
80–100%
However, do not classify sand using the 600 µm result alone.
The entire grading curve should satisfy the applicable requirements.
Zone I Fine Aggregate
Zone I is the coarsest of the four grading zones.
Typical characteristics may include:
- relatively lower percentage of fine particles;
- comparatively higher proportion of coarse sand particles;
- potentially lower total particle surface area; and
- different mortar and finishing behaviour compared with finer sands.
Zone I sand is not automatically better or worse than Zone II or Zone III.
The concrete proportions must be adjusted to suit the actual grading.
A coarse sand combined with excessive coarse aggregate may make concrete:
- harsh;
- difficult to finish;
- less cohesive; or
- prone to segregation.
Therefore, sufficient mortar and paste must still be provided.
Zone II Fine Aggregate
Zone II represents an intermediate grading commonly encountered in concrete work.
Many concrete mix-design examples use Zone II because it provides a convenient reference condition.
However:
Zone II is not compulsory for concrete.
Fine aggregate conforming to other permitted grading zones can also be used where the resulting concrete satisfies the required performance.
The mix-design proportions should correspond to the actual grading zone rather than forcing every sand into Zone II.
Zone III Fine Aggregate
Zone III is finer than Zone II.
As sand becomes finer:
- total particle surface area generally increases;
- the relative fine/coarse aggregate balance changes;
- water or admixture demand may change;
- cohesiveness can increase; and
- concrete may become sticky if the fine fraction is excessive.
IS 10262 accounts for the grading zone when selecting the initial coarse-aggregate volume fraction.
Therefore, changing from Zone II to Zone III should not be ignored during mix proportioning.
Zone IV Fine Aggregate
Zone IV is the finest grading zone.
Very fine sand can influence:
- water demand;
- paste demand;
- workability;
- shrinkage;
- finishing;
- pumping behaviour; and
- fine/coarse aggregate balance.
Fine aggregate conforming to Zone IV should be treated carefully for reinforced concrete.
Its suitability should be demonstrated through appropriate concrete trials before adoption.
Do not reject Zone IV solely because of its zone number, but do not use it blindly either.
Does Zone Number Represent Sand Quality?
No.
Grading zone describes:
particle-size distribution
It does not directly describe:
- aggregate strength;
- cleanliness;
- chloride content;
- sulphate content;
- alkali reactivity;
- water absorption;
- specific gravity;
- organic impurities; or
- overall concrete performance.
A Zone II sand can still be unsuitable if it contains excessive deleterious material.
Similarly, a properly tested Zone III sand may perform satisfactorily in concrete.
Therefore:
Grading zone ≠ complete aggregate quality
How Is the Grading Zone Determined?
A representative fine aggregate sample is tested by sieve analysis.
The typical process is:
Obtain representative sample
↓
Dry the sample as required by the test procedure
↓
Weigh the test sample
↓
Arrange the IS sieves
↓
Sieve the sample
↓
Measure mass retained on each sieve
↓
Calculate cumulative mass retained
↓
Calculate cumulative percentage passing
↓
Compare results with IS 383 limits
↓
Identify the grading zone
For the complete laboratory procedure, see our Sieve Analysis / Particle Size Distribution of Aggregate.
Example Fine Aggregate Sieve Analysis
Suppose a fine aggregate gives the following results:
| IS Sieve | Percentage Passing |
|---|---|
| 10 mm | 100 |
| 4.75 mm | 98 |
| 2.36 mm | 89 |
| 1.18 mm | 72 |
| 600 µm | 48 |
| 300 µm | 22 |
| 150 µm | 7 |
Compare the values with the grading-zone limits.
At 600 µm:
48% passing
This lies within Zone II:
35–59%
Check the remaining sieves:
4.75 mm:
98% → within Zone II
2.36 mm:
89% → within Zone II
1.18 mm:
72% → within Zone II
300 µm:
22% → within Zone II
150 µm:
7% → within Zone II
Therefore, this fine aggregate can be classified as:
Grading Zone II
subject to the complete applicable requirements.
IS 383 Grading Tolerance
IS 383 permits a limited tolerance where the grading falls slightly outside a particular zone.
For sieves other than the 600 µm sieve, grading may fall outside a particular zone by not more than:
5 percentage points for an individual sieve
subject to a total cumulative deviation of not more than:
10 percentage points
and still be regarded as falling within that grading zone.
However, this tolerance does not apply:
- to the percentage passing the 600 µm sieve;
- to values beyond the coarse limit of Zone I; or
- to values beyond the finer limit of Zone IV.
This provision should be applied carefully.
Do not use the tolerance to justify consistently poorly graded material.
Special 150 µm Provision for Crushed Stone Sand
For crushed stone sand, IS 383 permits a higher percentage passing the 150 µm sieve.
The permissible limit may be increased to:
20%
for crushed stone sand.
This provision should not be confused with the separate limits on material finer than 75 µm or with the grading tolerance.
The actual aggregate should still satisfy all other relevant requirements.
Why Fine Aggregate Grading Affects Concrete Mix Design
Fine aggregate forms an important part of the mortar phase.
Changing its grading changes the particle packing inside the concrete.
That can affect:
- void structure;
- aggregate packing;
- paste requirement;
- workability;
- cohesiveness;
- water demand;
- segregation resistance;
- bleeding; and
- pumpability.
Therefore, fine aggregate grading is not just a laboratory classification exercise.
It directly affects mix proportioning.
Fine Aggregate Zone and IS 10262 Aggregate Proportioning
IS 10262:2019 uses the fine aggregate grading zone when selecting the initial coarse-aggregate fraction.
For crushed/angular coarse aggregate at a reference water-cement or water-cementitious materials ratio of 0.50, the initial coarse-aggregate fractions are:
| Nominal Maximum Aggregate Size | Zone I | Zone II | Zone III | Zone IV |
|---|---|---|---|---|
| 10 mm | 0.48 | 0.50 | 0.52 | 0.54 |
| 20 mm | 0.60 | 0.62 | 0.64 | 0.66 |
| 40 mm | 0.69 | 0.71 | 0.72 | 0.73 |
These figures represent:
Volume of coarse aggregate ÷ Total aggregate volume
They do not represent:
coarse aggregate ÷ total concrete volume
This distinction is very important.
Why Coarse Aggregate Fraction Increases With Finer Sand
Consider 20 mm aggregate at the reference conditions.
Zone I:
Coarse aggregate fraction = 0.60
Zone II:
0.62
Zone III:
0.64
Zone IV:
0.66
As the sand grading becomes progressively finer, IS 10262 uses a progressively larger initial coarse-aggregate fraction.
Correspondingly, the fine aggregate fraction becomes smaller.
The reason is that finer sand contains more smaller particles and generally requires a lower volume fraction of fine aggregate to achieve the required balance.
Example – Zone II Aggregate Proportion
Suppose:
Nominal maximum coarse aggregate size:
20 mm
Fine aggregate:
Zone II
Reference w/cm:
0.50
Initial coarse aggregate fraction:
0.62
Therefore:
Fine aggregate fraction:
1 − 0.62
= 0.38
So the initial aggregate-volume split is:
Coarse aggregate = 62%
Fine aggregate = 38%
of the total aggregate volume.
This is a starting value.
Further adjustment may be required.
Example – Same Concrete With Zone III Sand
Now suppose the fine aggregate changes from Zone II to Zone III.
For 20 mm aggregate:
Zone III initial coarse aggregate fraction:
0.64
Fine aggregate fraction:
1 − 0.64
= 0.36
Therefore:
Coarse aggregate = 64%
Fine aggregate = 36%
This demonstrates that changing sand grading can change the calculated aggregate quantities even when:
- concrete grade;
- aggregate size;
- water content; and
- cementitious content
remain unchanged.
Effect of Water-Cementitious Ratio
The initial IS 10262 coarse-aggregate fractions are based on a reference:
w/c or w/cm = 0.50
Where the adopted ratio differs from 0.50, the coarse aggregate fraction is adjusted according to the applicable IS 10262 procedure.
Therefore, the complete sequence is:
Select aggregate size
↓
Determine fine aggregate grading zone
↓
Read initial coarse aggregate fraction
↓
Adjust for adopted w/c or w/cm
↓
Apply pumpability or other justified adjustment
↓
Calculate fine aggregate fraction
↓
Convert volumes to masses
For the complete calculation, see our Fine and Coarse Aggregate Proportioning in Concrete Mix Design.
Example – Changing Zone Changes Aggregate Mass
Suppose the total aggregate volume available after the absolute-volume calculation is:
0.700 m³
Nominal maximum aggregate size:
20 mm
Assume the reference w/cm condition for this simplified comparison.
With Zone II Sand
Coarse aggregate fraction:
0.62
Coarse aggregate volume:
0.700 × 0.62
= 0.434 m³
Fine aggregate volume:
0.700 × 0.38
= 0.266 m³
With Zone III Sand
Coarse aggregate fraction:
0.64
Coarse aggregate volume:
0.700 × 0.64
= 0.448 m³
Fine aggregate volume:
0.700 × 0.36
= 0.252 m³
Therefore, simply changing from Zone II to Zone III changes the preliminary fine and coarse aggregate volumes.
The masses must then be calculated using the actual specific gravities.
Do Not Replace Aggregate Volume Directly With Mass Percentage
The IS 10262 coarse-aggregate fraction is a volume fraction.
For example:
Coarse aggregate fraction = 0.62
does not automatically mean:
62% of total aggregate mass
Fine and coarse aggregate may have different specific gravities.
The correct process is:
Total aggregate volume × selected volume fraction
followed by:
Aggregate Mass = Aggregate Volume × Specific Gravity × 1000
For the complete volume calculation, see our Absolute Volume Method for Concrete Mix Design.
Fine Aggregate Grading and Water Demand
A finer sand generally has greater total particle surface area.
Greater surface area can increase the quantity of paste required to coat and lubricate particles.
Depending on:
- particle shape;
- surface texture;
- fines content;
- grading continuity; and
- admixture,
a finer sand may increase water or admixture demand for similar workability.
However, grading zone alone should not be used to calculate a fixed water increase.
The actual water requirement should be confirmed by trial mixes.
For the initial mix-design water calculation, see our Water Content Calculation in Concrete Mix Design.
Fine Aggregate Grading and Workability
Workability depends on the entire particle system.
Sand that is too coarse for a particular mix may make concrete:
- harsh;
- difficult to finish; or
- prone to segregation.
Sand that is excessively fine may make concrete:
- sticky;
- water-demanding;
- difficult to pump efficiently; or
- high in paste demand.
Therefore, the optimum grading depends on the full concrete system rather than the zone name alone.
Fine Aggregate Grading and Pumped Concrete
Pumpable concrete generally requires:
- adequate mortar content;
- continuous grading;
- sufficient cohesiveness; and
- resistance to segregation.
Fine aggregate plays an important role in developing the lubricating mortar phase required during pumping.
However:
more fine sand does not automatically mean better pumpability.
Excessive fine particles may increase:
- pumping pressure;
- water demand;
- admixture demand; and
- stickiness.
The final proportion should be established by concrete trials and, where appropriate, actual pumping trials.
See our Pumped Concrete Mix Design.
Natural Sand vs Manufactured Sand
Both natural and manufactured fine aggregates may fall within a particular grading zone.
For example:
a natural sand may be Zone II
and
a crushed stone sand may also be Zone II.
However, they may not produce identical concrete.
Particle:
- shape;
- angularity;
- texture;
- water absorption;
- fines content; and
- packing characteristics
may differ.
Therefore:
same grading zone ≠ identical concrete behaviour
Trial verification remains necessary.
Can Two Sands Be Blended?
Yes.
Fine aggregate sources may sometimes be blended to obtain a more suitable combined grading.
For example:
coarse natural sand + finer manufactured sand
may produce a combined grading suitable for the project.
The combined grading should be calculated from the actual blending percentages.
Do not simply mix two sands in equal proportions without checking the resulting sieve-analysis curve.
Combined Grading Calculation
Suppose:
Sand A = 60% of blend
Sand B = 40% of blend
At the 600 µm sieve:
Sand A passing = 30%
Sand B passing = 75%
Combined passing:
(0.60 × 30) + (0.40 × 75)
= 18 + 30
= 48%
Therefore:
Combined percentage passing 600 µm:
48%
The same calculation should be performed for every applicable sieve.
The final combined grading can then be compared with the IS 383 limits.
Sand Grading Can Change With Stockpile Variation
Fine aggregate grading may vary because of:
- quarry changes;
- crusher settings;
- screening;
- rainfall;
- stockpile segregation;
- loading method;
- blending ratio; and
- supply variation.
Therefore, a sand classified as Zone II in one test should not automatically be assumed to remain unchanged indefinitely.
Periodic quality-control testing may be required according to the project specification and production-control plan.
Grading Zone vs Fineness Modulus
Grading zone and fineness modulus are related to particle-size distribution, but they are not the same.
Grading Zone
Determined by comparing sieve-analysis percentages with specified grading limits.
Fineness Modulus
A numerical index calculated from selected cumulative percentages retained on standard sieves.
Two sands can have similar fineness modulus values while still having different detailed grading curves.
Do not use fineness modulus alone as a replacement for checking the actual grading-zone limits where the specification requires grading compliance.
Fine Aggregate Zone and Concrete Strength
Grading zone does not directly define concrete strength.
Concrete strength depends on factors including:
- water-cementitious ratio;
- target mean strength;
- cementitious system;
- compaction;
- curing;
- aggregate quality;
- air content; and
- production control.
However, poor fine aggregate grading can indirectly affect concrete strength if it causes:
- excessive water demand;
- poor compaction;
- segregation;
- excess voids; or
- unstable workability.
Fine Aggregate Zone and Concrete Durability
Likewise, grading zone does not directly establish durability.
But unsuitable grading may cause practical problems such as:
- increased water demand;
- bleeding;
- segregation;
- poor surface quality; or
- difficulty achieving dense concrete.
The final concrete must still satisfy the applicable:
- maximum w/c or w/cm;
- cementitious-material requirement;
- strength;
- workability; and
- durability provisions.
Fine Aggregate Grading and Moisture Correction
Grading-zone classification and moisture correction are separate issues.
A Zone II sand may be:
- dry;
- SSD;
- damp; or
- wet.
Its actual moisture condition affects:
- wet batch mass; and
- water contributed to the concrete.
Therefore, after the design quantities have been calculated, apply the appropriate aggregate moisture correction.
See our Moisture Correction in Concrete Mix Design.
Fine Aggregate Grading and Specific Gravity
Grading zone also does not determine specific gravity.
Two Zone II sands from different rock sources may have different specific gravities.
Specific gravity should therefore be measured or otherwise appropriately established for the actual material.
It is then used in the absolute-volume calculation.
See our Specific Gravity and Water Absorption of Aggregate.
What if the Sand Does Not Fit One Grading Zone Perfectly?
First verify:
- representative sampling;
- sample preparation;
- sieve condition;
- weighing accuracy; and
- calculation.
Then consider the grading tolerances permitted by IS 383.
Do not arbitrarily assign the sand to the nearest zone merely to complete the mix design.
If the grading genuinely does not satisfy the applicable requirements, consider:
- blending with another approved fine aggregate;
- improving processing or screening;
- obtaining another source; or
- conducting the additional evaluation required by the project specification.
Example – Identifying a Zone From Sieve Results
Suppose the laboratory result is:
| Sieve | Percentage Passing |
|---|---|
| 10 mm | 100 |
| 4.75 mm | 96 |
| 2.36 mm | 82 |
| 1.18 mm | 65 |
| 600 µm | 45 |
| 300 µm | 20 |
| 150 µm | 6 |
Check against Zone II:
10 mm:
100 → acceptable
4.75 mm:
96 → within 90–100
2.36 mm:
82 → within 75–100
1.18 mm:
65 → within 55–90
600 µm:
45 → within 35–59
300 µm:
20 → within 8–30
150 µm:
6 → within 0–10
Therefore:
Fine Aggregate = Grading Zone II
Example – Zone III Sand
Suppose:
| Sieve | Percentage Passing |
|---|---|
| 10 mm | 100 |
| 4.75 mm | 98 |
| 2.36 mm | 92 |
| 1.18 mm | 82 |
| 600 µm | 68 |
| 300 µm | 28 |
| 150 µm | 8 |
The results fit within the Zone III limits.
Therefore:
Fine Aggregate = Grading Zone III
For 20 mm nominal maximum coarse aggregate and the reference w/cm condition, the preliminary coarse aggregate fraction becomes:
0.64
instead of:
0.62 for Zone II
This difference should be reflected in the mix-design calculation.
Practical Mix Design Sequence
Use the following sequence:
Obtain representative fine aggregate sample
↓
Perform sieve analysis
↓
Calculate percentage passing each sieve
↓
Identify grading zone from IS 383
↓
Confirm other aggregate properties
↓
Select nominal maximum coarse aggregate size
↓
Use grading zone in IS 10262 aggregate proportioning
↓
Adjust for actual w/c or w/cm
↓
Apply justified pumpability adjustment if required
↓
Calculate total aggregate volume
↓
Calculate fine and coarse aggregate masses
↓
Apply moisture correction
↓
Prepare trial mix
↓
Check workability, cohesiveness and segregation
↓
Verify strength
↓
Finalize production mix
Fine Aggregate Grading Checklist
Before using a grading zone in mix design, confirm:
- Representative sample collected
- Sieve analysis completed
- Percentage passing calculated correctly
- IS 383 grading limits checked
- 600 µm result checked carefully
- Applicable grading tolerance reviewed
- Crushed stone sand provisions checked where relevant
- Zone IV suitability evaluated where applicable
- Fine aggregate specific gravity known
- Water absorption known
- Moisture condition known
- Fines/deleterious-material requirements checked
- Actual grading zone entered in the mix design
- Fine/coarse aggregate fractions calculated
- Trial mix completed
Common Mistakes
Assuming All Concrete Sand Is Zone II
Zone II is common, but it is not universal.
Always use actual sieve-analysis results.
Identifying the Zone From Appearance
Visual inspection cannot reliably determine grading zone.
Using Only the 600 µm Result
The 600 µm sieve is important, but the complete grading should be checked.
Confusing Zone Number With Sand Quality
A zone describes grading, not complete material quality.
Keeping the Same Aggregate Proportion After the Zone Changes
IS 10262 initial aggregate fractions depend on the grading zone.
Treating 0.62 as a Mass Fraction
The IS 10262 value is a volume fraction of total aggregate under the reference conditions.
Assuming Same Zone Means Same Water Demand
Particle shape and texture can change concrete behaviour even when grading zones are identical.
Ignoring Manufactured-Sand Fines
Crushed stone sand has specific provisions and should be checked against the applicable requirements.
Using Zone IV in RCC Without Verification
Zone IV fine aggregate requires particular caution in reinforced concrete and should be supported by suitable mix-performance testing.
Ignoring Stockpile Variation
Fine aggregate grading can change during production.
Frequently Asked Questions
What are the fine aggregate grading zones?
IS 383 classifies fine aggregate into Grading Zones I, II, III and IV according to its sieve-analysis particle-size distribution.
Which is the coarsest fine aggregate grading zone?
Zone I is the relatively coarsest grading zone.
Which is the finest grading zone?
Zone IV is the finest grading zone.
Is Zone II sand compulsory for concrete?
No. Fine aggregate from other permitted grading zones may be used where the concrete mix is properly proportioned and satisfies the required performance.
Which sieve is most important for identifying the grading zone?
The 600 µm sieve is especially useful for distinguishing the zones, but the complete sieve-analysis results should be checked.
What is the Zone II limit on the 600 µm sieve?
For Zone II fine aggregate, the percentage passing the 600 µm sieve is:
35–59%
What is the Zone III limit on the 600 µm sieve?
For Zone III:
60–79%
Can Zone IV sand be used in RCC?
Its use in reinforced concrete should be supported by tests demonstrating that the proposed concrete mix proportions are suitable.
Does the grading zone affect coarse aggregate quantity?
Yes. IS 10262 uses the fine aggregate grading zone when selecting the initial coarse-aggregate volume fraction.
What is the coarse aggregate fraction for 20 mm aggregate and Zone II sand?
At the reference w/c or w/cm of 0.50:
0.62
before other applicable adjustments.
What is the coarse aggregate fraction for 20 mm aggregate and Zone III sand?
At the same reference condition:
0.64
Can manufactured sand be classified into grading zones?
Yes, provided its grading and other applicable requirements are determined and verified according to the relevant aggregate specification.
Does grading zone determine water absorption?
No. Water absorption is a separate material property and must be tested independently.
Does grading zone determine specific gravity?
No. Specific gravity is also a separate property.
Can two sands be blended to improve grading?
Yes. The combined grading should be calculated from the actual proportions and verified by sieve analysis and concrete trials.
Related Concrete Mix Design Resources
Continue with these T Square Civil resources:
Concrete Mix Design Procedure as per IS 10262:2019
Concrete Mix Design Calculator as per IS 10262:2019
Fine and Coarse Aggregate Proportioning in Concrete Mix Design
Nominal Maximum Aggregate Size in Concrete Mix Design
Water Content Calculation in Concrete Mix Design
Absolute Volume Method for Concrete Mix Design
Moisture Correction in Concrete Mix Design
Sieve Analysis / Particle Size Distribution of Aggregate
Specific Gravity and Water Absorption of Aggregate
Conclusion
Fine aggregate grading zone is an important input in concrete mix design because it describes how the fine aggregate particles are distributed across different sizes.
IS 383:2016 classifies fine aggregate into:
Zone I → relatively coarse
Zone II → medium-coarse
Zone III → relatively fine
Zone IV → finest
The classification must be established from sieve analysis rather than visual inspection.
The grading zone directly influences the initial fine/coarse aggregate split used in IS 10262 mix proportioning.
For example, with 20 mm nominal maximum coarse aggregate and the reference w/c or w/cm of 0.50:
Zone I → CA fraction 0.60
Zone II → CA fraction 0.62
Zone III → CA fraction 0.64
Zone IV → CA fraction 0.66
As the fine aggregate becomes progressively finer, the initial fine aggregate volume fraction is reduced and the coarse aggregate fraction increases.
However, grading zone alone does not determine concrete performance.
The final mix should consider:
particle shape + surface texture + water absorption + moisture + fines content + coarse aggregate grading + workability + pumpability + trial performance
The correct workflow is therefore:
Test sand → identify grading zone → use correct IS 10262 aggregate fraction → calculate quantities → apply moisture correction → prepare trial mix → verify workability and strength → finalize the production mix
Engineering note: Use the latest applicable Indian Standards, approved project specifications and representative aggregate test results when classifying fine aggregate and proportioning concrete.
